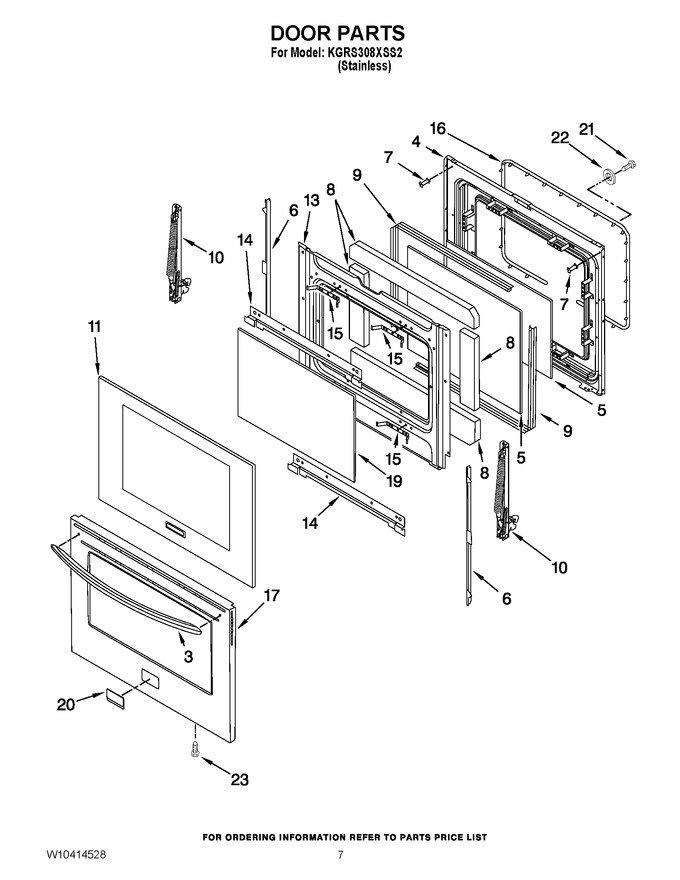

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	W10350605		Handle, Door (s.steel)				$ 125.83
4	W10347855		Liner, Door		Appelez-nous	-
5	W10347853		Glass, Inner				$ 91.43
6	W10352006		Bracket, Glass (stainless Model Only)		Appelez-nous	-
7	W10414709		Spacer, Door Handle (stainless Model Only)		Appelez-nous	-
8	W10347852		Insulation, Door		Appelez-nous	-
9	W10348012		Frame, Door Glass		Appelez-nous	-
10	W10352004		Hinge, Door (stainless)		Appelez-nous	-
11	W10351948		Glass, Outer Door (stainless Steel)				$ 178.19
13	W10347850		Retainer, Shield-wool		Appelez-nous	-
14	W10348015		Bracket, Airwash Glass		Appelez-nous	-
15	W10350617		Bracket, Glass Spacer-door Glass (stainless Model Only)		Appelez-nous	-
16	W10348010		Seal, Door				$ 58.74
17	W10362108		Door Panel (stainless Model Only)				$ 277.74
19	W10348011		Glass, Door Inner		Appelez-nous	-
20	W10852683		Nameplate (stainless)   (Replaces: W10113961)				$ 104.26
21	W10370041		Screw, Door		Appelez-nous	-
22	W10370042		Washer, Door		Appelez-nous	-
23	W10370043		Screw, Door Panel		Appelez-nous	-
