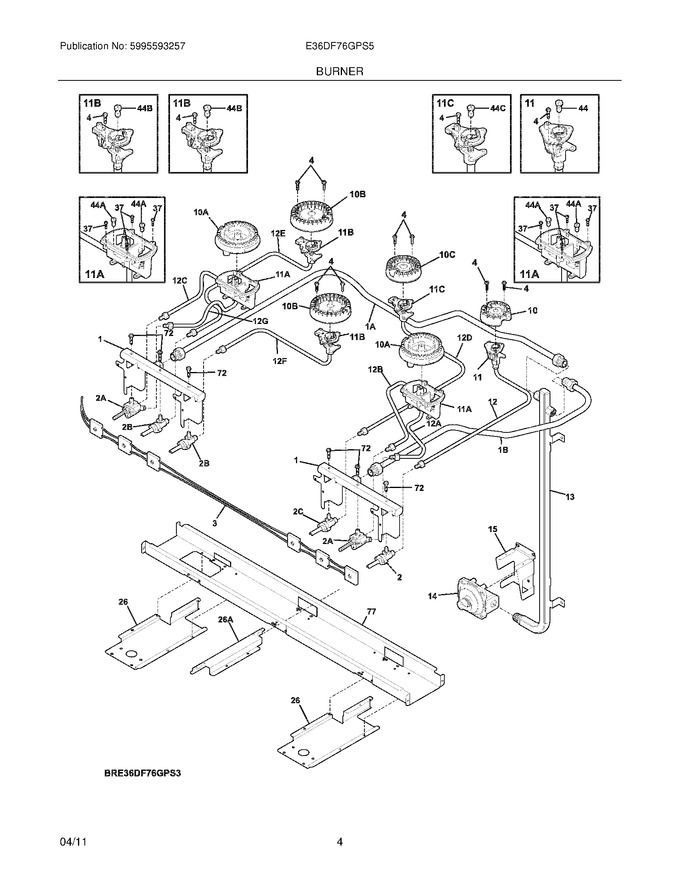

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316240600		Screw,hex Wash ,6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
15	318376122		Bracket,regulator ,(2)		Appelez-nous	-
26	318363803		Bracket,channel Mtg		Appelez-nous	-
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
77	318355513		Bracket,channel Mtg.		Appelez-nous	-
26A	318363903		Bracket,channel Mtg.		Appelez-nous	-
F1	318357805		Manifold,(2)				$ 125.84
F10	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10A	316525401		Burner,sealed ,dual ,18k				$ 187.54
F10B	316438600		Burner,sealed ,14k			Immediately	$ 79.80
F10C	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
F11	316540800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder				$ 11.20
F11A	316525103		Ignitor/orifice Assy.,top Burner ,18k ,w/holder				$ 219.39
F11B	316543204		Ignitor/orifice Assy.,top Burner ,14k				$ 12.33
F11C	316540700		Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder				$ 11.15
F12	318366711		Tube,burner ,rh Rear ,5k		Appelez-nous	-
F12A	318366721		Tube,18k Burner ,rh Front		Appelez-nous	-
F12B	318366720		Tube,18k Burner ,rh Front		Appelez-nous	-
F12C	318366722		Tube,18k Burner ,lh Front		Appelez-nous	-
F12D	318366726		Tube,9.5k Burner ,center		Appelez-nous	-
F12E	318366724		Tube,14k Burner ,lh Rear		Appelez-nous	-
F12F	318366725		Tube,14k Burner ,center Front		Appelez-nous	-
F12G	318366723		Tube,18k Burner ,lh Front		Appelez-nous	-
F13	318357811		Manifold,regulator		Appelez-nous	-
F14	318122705		Regulator,pressure				$ 120.58
F1A	318305453		Tube,manifold ,interconnect				$ 111.48
F1B	318305454		Tube,manifold ,interconnect				$ 102.77
F2	316520700		Valve,burner ,5k				$ 126.87
F2A	316574900		Valve,top Burner ,18k Dual				$ 242.16
F2B	316520703		Valve,burner ,14.2k				$ 146.01
F2C	316520701		Valve,burner ,9.5k				$ 131.84
F3	318232638		Wiring Harness,w/igntr Switch			Immediately	$ 150.06
F44	316527504		Orifice,top Burner ,5k				$ 22.68
F44A	316523509		Orifice,top Burner ,center ,18k				$ 20.69
F44A	316523512		Orifice,top Burner ,18k		Appelez-nous	-
F44B	316527511		Orifice,top Burner ,14k				$ 19.85
F44C	316527500		Orifice,top Burner ,9.5k				$ 21.40
FNI	318186927		Lp Conversion Kit		Appelez-nous	-
FNI	318243105		Harness,burner Wiring		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
