SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Main Top


11 - Door


12 - Wiring Diagram

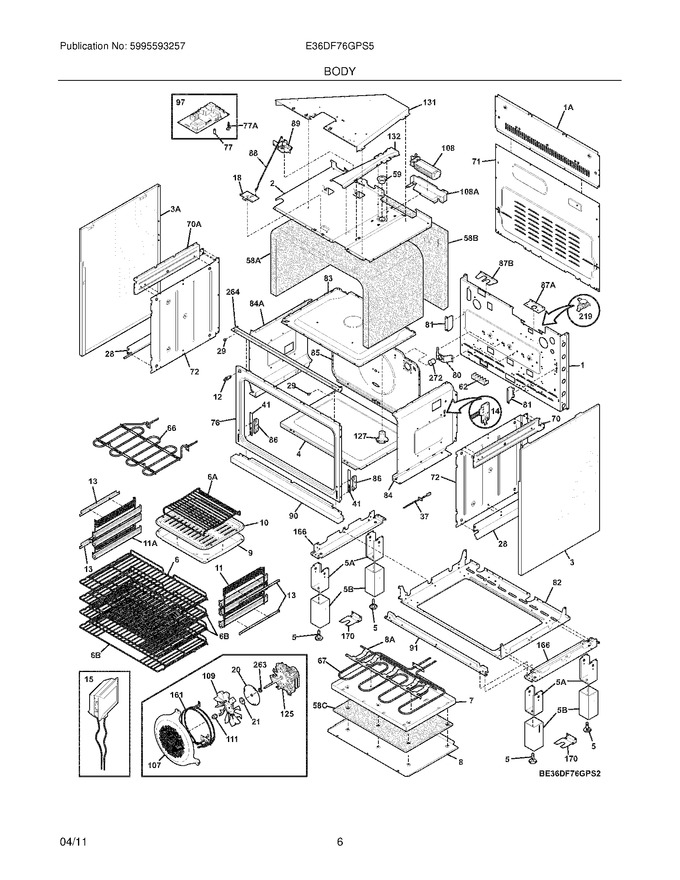

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259251		Back,main		Appelez-nous	-
2	318258955		Shield,insulation ,upper		Appelez-nous	-
3	318352756		Panel,side ,stainless ,lh		Appelez-nous	-
4	318364102		Liner,oven Bottom		Appelez-nous	-
5	318175506		Screw,leveling				$ 38.28
6	318240151		Shelf,oven ,fixed				$ 238.67
7	318297350		Box,bake Element		Appelez-nous	-
8	318359550		Panel,service		Appelez-nous	-
9	318138801		Pan,broiler		Appelez-nous	-
10	318126401		Insert,broiler Pan		Appelez-nous	-
11	318240058		Glide & Support Assy,oven Shelves ,rh				$ 407.56
12	316445501		Switch,oven Light ,door Frame				$ 90.01
13	318603908		Bracket,ladder Mtg. ,(4)				$ 159.26
14	318903401		Switch,rack Sensing		Appelez-nous	-
20	318389400		Plate,retainer				$ 16.21
21	318389000		Seal,ring				$ 22.75
28	318369311		Bracket,side Panel ,(2)		Appelez-nous	-
29	316517600		Spacer,oven Door				$ 12.05
41	318366603		Spacer,front Frame   (Replaces: 318366601)		Appelez-nous	-
59	318072577		Duct,oven Vent				$ 16.30
62	5303935061		Terminal Block Kit		Appelez-nous	-
70	318302750		Shield,insulation ,right		Appelez-nous	-
71	318260050		Panel,rear Box ,lower				$ 124.01
72	318259151		Shield,insulation ,sides ,(2)		Appelez-nous	-
76	318364902		Front,oven		Appelez-nous	-
77	318293702		Spacer,control				$ 16.22
80	318364800		Plate,oven Mtg		Appelez-nous	-
81	318373700		Bracket,oven ,(2)		Appelez-nous	-
82	318258777		Shield,insulation ,lower		Appelez-nous	-
83	318364202		Liner,oven Top		Appelez-nous	-
84	318364304		Liner,oven Side ,rh		Appelez-nous	-
85	318364408		Liner,oven Back		Appelez-nous	-
86	318241406		Receptacle,hinge ,(2)				$ 75.83
88	318376500		Rod,latch		Appelez-nous	-
90	318355052		Trim,bottom ,stainless				$ 353.22
91	318376300		Bracket,reinforcement		Appelez-nous	-
97	316455705		Board,power ,relay				$ 445.19
107	318906601		Cover,fan				$ 202.63
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	318357002		Adapter,vent Tube		Appelez-nous	-
131	318272950		Box,vent		Appelez-nous	-
132	318347800		Chimney		Appelez-nous	-
166	318352550		Bracket,leveling Leg ,(2) ,reinforcement		Appelez-nous	-
170	318335703		Anti-tip & Accessories				$ 38.26
263	316008401		Washer,flat   (Replaces: 316136500)				$ 11.34
264	318257753		Trim,oven ,black ,front		Appelez-nous	-
272	318249408		Tube,protector		Appelez-nous	-
11A	318240059		Glide & Support Assy,oven Shelves ,rh				$ 382.62
1A	318260056		Panel,rear Box ,upper		Appelez-nous	-
3A	318352757		Panel,side ,stainless ,rh		Appelez-nous	-
58A	318362117		Insulation,top & Sides		Appelez-nous	-
58B	318362116		Insulation,rear		Appelez-nous	-
58C	318294913		Insullation,bake Element		Appelez-nous	-
5A	318368850		Bracket,leveling Leg ,(4)		Appelez-nous	-
5B	318352451		Cover,leveling Leg ,(4)				$ 236.36
6A	318365800		Rack,broiler Pan				$ 52.46
6B	318240252		Shelf,oven ,(2) ,extendable				$ 238.93
70A	318302751		Shield,insulation ,left		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
84A	318364314		Liner,oven Side ,lh		Appelez-nous	-
87A	318111806		Plate,cord Set Mtg				$ 11.68
87B	318111817		Plate,cord Set Mtg		Appelez-nous	-
8A	318313605		Bracket,bake Element		Appelez-nous	-
F108	318251300		Bracket,fan Support				$ 54.60
F108	318073028		Motor,blower			Immediately	$ 271.69
F125	5304463302		Motor-convection			Immediately	$ 259.95
F15	318241006		Lamp,oven ,(2) ,halogen				$ 117.71
F161	318255511		Element,convection ,2500 W			Immediately	$ 110.20
F18	316405800		Latch Assembly,oven Door			Immediately	$ 56.74
F219	318004902		Switch,thermal			Immediately	$ 71.44
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F66	318255858		Element,broil ,4000w				$ 160.02
F67	318254917		Element,bake ,3000w				$ 131.62
F89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
FNI	318946400		Bulb,halogen ,g9 ,40w ,120v			Immediately	$ 49.32
FNI	318402211		Wiring Harness,main ,latch		Appelez-nous	-
FNI	318370365		Wiring Harness,main		Appelez-nous	-
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	318235301		Connector Assy.,w/3 Lugs ,& Instructions   (Replaces: 318235300)				$ 29.06
NI	318368404		Bracket,reinforcement ,rh		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	318165800		Spacer				$ 17.72
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5304463705		Screw,8-18 X 1/2 ,(4)		Appelez-nous	-
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	154079601		Nut,bracket Mtg ,(12)   (Replaces: 5304463707)				$ 0.41
NI	5303310510		Screw,10-24 X 0.625				$ 14.18
NI	318391100		Screw,glide Mtg ,(2)				$ 141.75

    View Diagram in Separate Window       Print Part List
