SELECT A DIAGRAM

01 - Cover

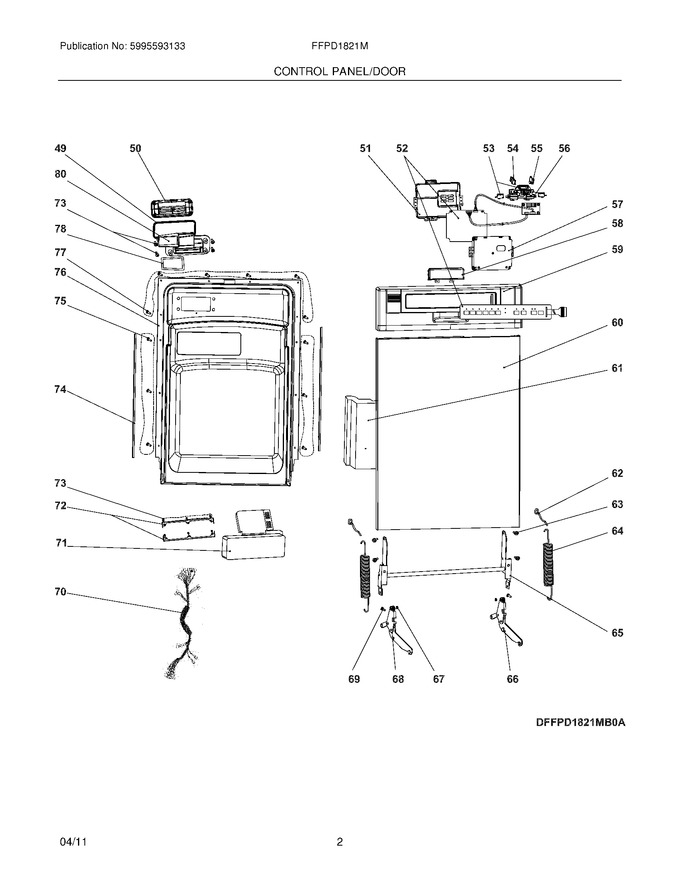

03 - Control Panel/door


05 - Tub/frame/wrapper


07 - Motor & Pump


09 - Racks/back Plate


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
49	5304482423		Gasket,vent ,to Door Liner				$ 20.63
50	5304482452		Cover,door Vent				$ 19.85
51	5304483458		Cover,control Board				$ 55.76
54	5304483464		Barrier,switch ,lh				$ 8.87
55	5304483465		Barrier,switch ,rh				$ 9.61
56	5304535183		Latch,door   (Replaces: 5304482428)			Immediately	$ 16.22
57	5304483466		Box,main Board				$ 28.25
58	5304483468		Cover,handle ,white		Appelez-nous	-
59	5304483470		Console,assembly ,white				$ 166.53
60	5304483512		Door,outer ,white				$ 154.51
61	5304483474		Foam Assembly,door ,inner		Appelez-nous	-
62	5304482486		Bolt,door Spring ,(2)				$ 17.64
63	5304482478		Screw,rec ,m5 X 6 ,(5)		Appelez-nous	-
64	5304483475		Spring,door Hinge ,(2)				$ 19.60
65	5304483476		Hinge Assembly,door				$ 60.69
66	5304482484		Hinge,door ,rh				$ 73.92
67	5304482482		Ring,clamping ,(2)		Appelez-nous	-
68	5304482483		Hinge,door ,lh				$ 70.56
69	5304482485		Pin,hinge Joint ,(2)				$ 12.71
72	5304482449		Bracket,dispenser Mtg. ,(2)		Appelez-nous	-
73	5304483478		Screw,dispenser Mtg. ,(6)		Appelez-nous	-
74	5304482447		Guard,door ,white ,side ,(2)		Appelez-nous	-
75	5304482451		Screw,rec Tap ,st3.5 X 13 ,(6)				$ 4.94
76	5304483479		Liner Assembly,door ,inner				$ 278.78
77	5304482425		Screw,rec Tap ,st3.5 X 18 ,(6)				$ 4.25
78	5304483480		Gasket,vent				$ 16.75
80	5304483481		Vent Assembly,door				$ 26.94
F52	5304483459		Control Board,assembly ,main		Appelez-nous	-
F52	5304483461		Control Board,small		Appelez-nous	-
F52	5304483460		Touch Pad,membrane ,white		Appelez-nous	-
F53	5304483463		Switch,micro ,(2) ,latch Assembly			Immediately	$ 59.28
F70	5304483477		Harness,wiring ,main		Appelez-nous	-
F71	5304509278		Dispenser,assembly   (Replaces: 5304482450)				$ 231.58
NI	5304484058		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
