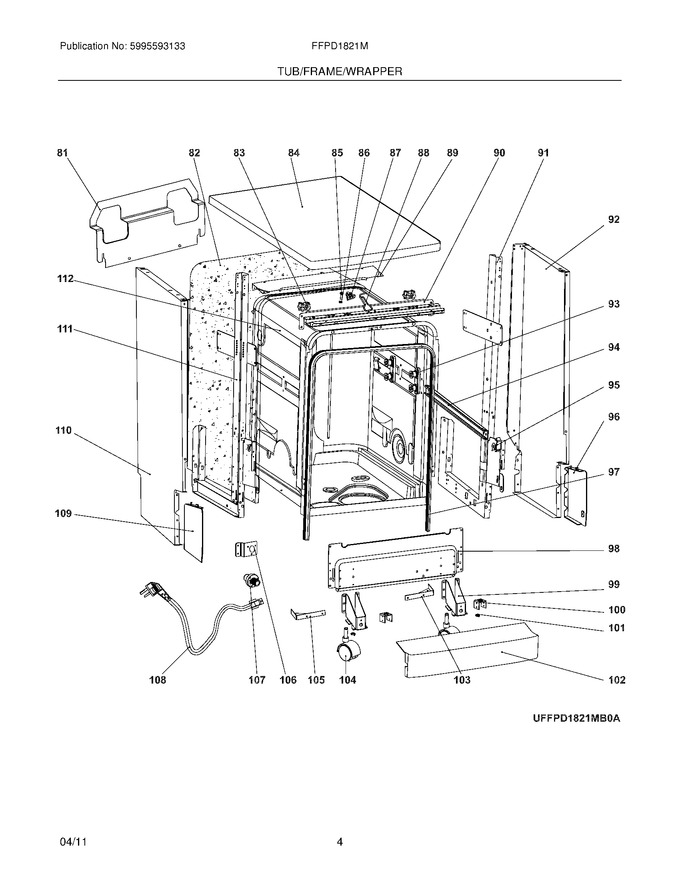

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
81	5304483513		Brace,back ,lower		Appelez-nous	-
82	5304483482		Insulation,blanket ,tub		Appelez-nous	-
83	5304483483		Block,top ,white ,(2)		Appelez-nous	-
84	5304483515		Top Panel,white				$ 290.01
85	5304482376		Screw,rec Cntrsunk Hd ,m4 X 16				$ 6.85
86	5304482375		Locknut,m4				$ 5.07
87	5304483484		Block,coupling				$ 16.01
88	5304483485		Hook,door Lock				$ 19.89
89	5304483516		Brace,back ,upper		Appelez-nous	-
90	5304483486		Brace Assembly,upper ,white ,front		Appelez-nous	-
91	5304483518		Frame Assembly,rh		Appelez-nous	-
92	5304483520		Side Panel,white ,rh		Appelez-nous	-
93	5304483488		Roller Assembly,tub ,(4)				$ 49.40
94	5304483489		Rail,guide ,upper Rack ,(2)				$ 43.24
95	5304483490		Cap,rail Guide ,(4)				$ 18.44
96	5304483521		Toe Plate,side ,white ,rh				$ 17.64
97	5304512895		Gasket,tub   (Replaces: 5304483491)			Immediately	$ 53.91
98	5304483523		Brace,front ,lower		Appelez-nous	-
99	5304483524		Bracket,roller ,(2)				$ 28.25
100	5304483525		Support,roller ,n Type ,(2)				$ 14.81
101	5304483526		Washer,roller ,spring ,(2)				$ 5.67
102	5304483528		Toe Plate,front ,white		Appelez-nous	-
103	5304483529		Angle,reinforcement ,rh		Appelez-nous	-
104	5304483530		Roller Assembly,bottom ,(4)				$ 46.73
105	5304483531		Angle,reinforcement ,lh		Appelez-nous	-
106	5304483532		Bracket,hose ,drain Pump		Appelez-nous	-
107	5304483533		Connector,hose ,drain Pump		Appelez-nous	-
109	5304483535		Toe Plate,side ,white ,lh				$ 17.64
110	5304483538		Side Panel,white ,lh		Appelez-nous	-
111	5304483539		Frame Assembly,lh		Appelez-nous	-
F108	5304483534		Cord,power				$ 55.67
F112	5304483540		Tub Assembly		Appelez-nous	-
