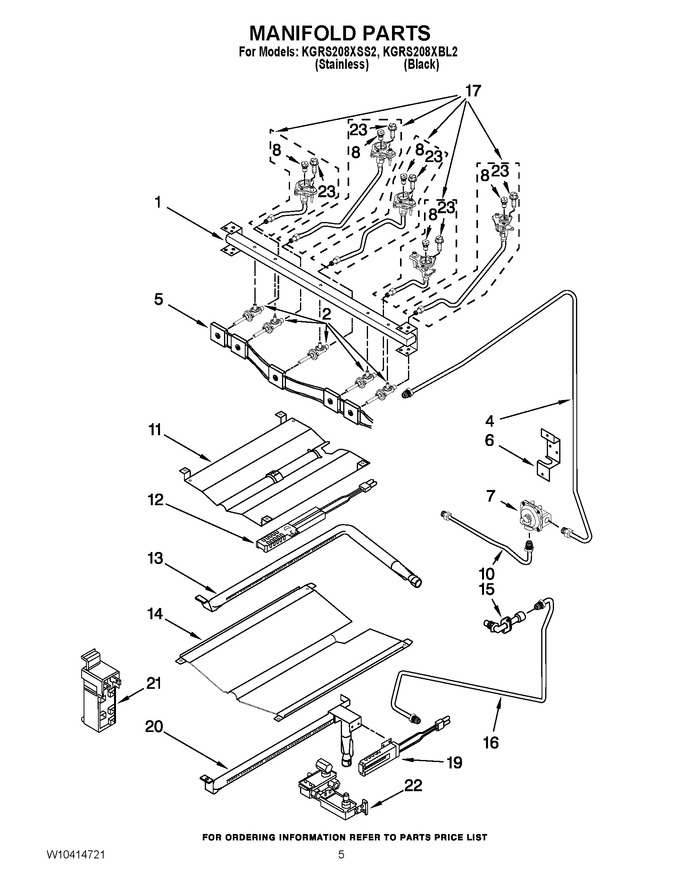

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10411614 | Manifold, Pipe |
|
- | |||||
| 2 | W10361221 | Valve, Burner (center) |
|
- | |||||
| 2 | W10315175 | Valve, Burner (9.5k (lf) |
|
$ 251.99 | |||||
| 2 | W10355923 | Valve, Burner (14/17k (rf) |
|
$ 219.95 | |||||
| 2 | W10315171 | Valve, Burner (5k (rr) |
|
$ 243.68 | |||||
| 2 | W10315168 | Valve, Burner (12/14k (lr) |
|
$ 164.08 | |||||
| 4 | W10411591 | Tubing, Gas |
|
- | |||||
| 5 | W10345838 | Harness, Igniter Includes Switches |
|
$ 63.74 | |||||
| 6 | W10346033 | Bracket, Regulator |
|
- | |||||
| 7 | W11033561 | Regulator, (Replaces: W10411589) |
|
$ 346.20 | |||||
| 8 | W10346165 | Orifice (5k (rr) |
|
- | |||||
| 8 | WPW10356900 | Orifice (17k (rf)) (Replaces: W10361222) |
|
$ 185.15 | |||||
| 8 | W10346166 | Orifice (12k (lr)) |
|
$ 86.10 | |||||
| 8 | W10346170 | Orifice (9.5k (lf & Center) |
|
$ 86.10 | |||||
| 10 | W10346034 | Tube, Valve To Regulator |
|
$ 43.74 | |||||
| 11 | W10346068 | Baffle, Broil Burner |
|
- | |||||
| 12 | W11084521 | Ignitor, Broil (Replaces: W10346056) |
|
Immediately | $ 368.37 | ||||
| 13 | W10346063 | Burner, Broiler |
|
- | |||||
| 14 | W10346057 | Baffle, Oven Burner |
|
- | |||||
| 15 | W10346064 | Elbow, Fitting |
|
- | |||||
| 16 | W10346062 | Tube, Valve To Mixer |
|
- | |||||
| 17 | W10345909 | Ignitor/orifice Assembly (17k (rf)) |
|
$ 46.25 | |||||
| 17 | W10345910 | Ignitor/orifice Assembly (5k (rr) |
|
$ 46.63 | |||||
| 17 | W10345917 | Ignitor/orifice Assembly (9.5k (lf) |
|
- | |||||
| 17 | W10345914 | Ignitor/orifice Assembly (12k (lr)) |
|
$ 47.68 | |||||
| 17 | WPW10345919 | Ignitor/orifice Assembly (9.5k (center) (Replaces: W10345919) |
|
$ 113.45 | |||||
| 19 | W10346130 | Ignitor, Oven Burner |
|
$ 133.30 | |||||
| 20 | W10346052 | Burner, Oven |
|
- | |||||
| 21 | W11084522 | Module, Spark (Replaces: W10345839) |
|
$ 331.45 | |||||
| 22 | W10346047 | Valve, Safety |
|
$ 251.35 | |||||
| 23 | W10346140 | Screw, Ignitor/orifice |
|
$ 27.80 | |||||
| NI | W10346171 | Spuds, Lp Gas (kit Of 5) |
|
$ 26.37 | |||||
| NI | W10346229 | Harness, Ignitor |
|
- | |||||
| NI | W10346138 | Cover, Broil Ignitor |
|
- | |||||
| NI | W10345844 | Bracket, Support Spark Module |
|
- |
