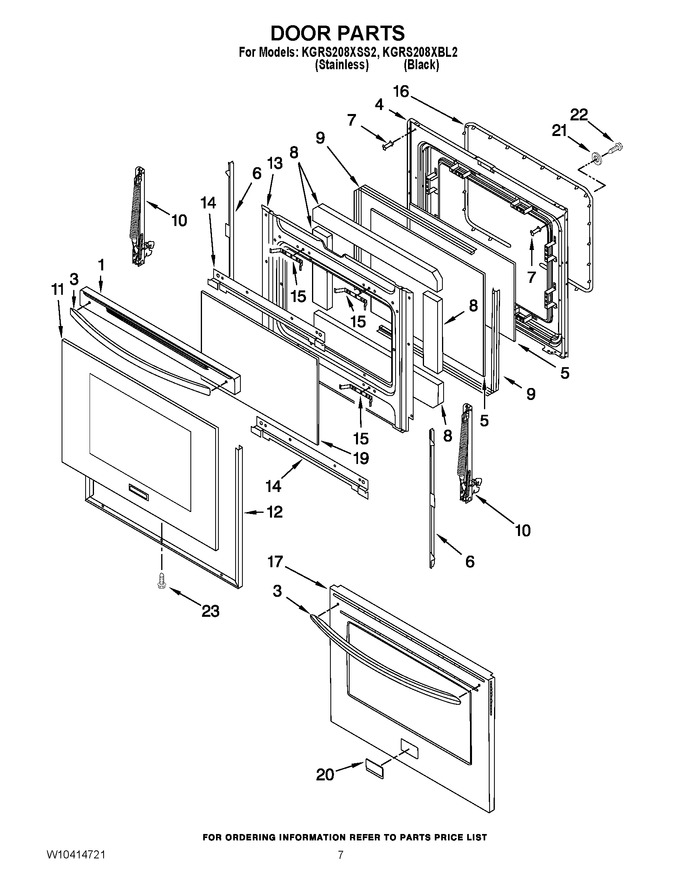

SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10348026		Trim, Door (black)				$ 34.81
3	W10347826		Handle, Door (black)		Appelez-nous	-
3	W10350605		Handle, Door (s.steel)				$ 125.83
4	W10347855		Liner, Door		Appelez-nous	-
5	W10347853		Glass, Inner				$ 91.43
6	W10352006		Bracket, Glass (stainless Model Only)		Appelez-nous	-
7	W10414709		Spacer, Door Handle (stainless Model Only)		Appelez-nous	-
8	W10347852		Insulation, Door		Appelez-nous	-
9	W10348012		Frame, Door Glass		Appelez-nous	-
10	W10348013		Hinge, Door (black)		Appelez-nous	-
10	W10352004		Hinge, Door (stainless)		Appelez-nous	-
11	W10351948		Glass, Outer Door (stainless Steel)				$ 178.19
11	W10347845		Glass, Outer Door (black)		Appelez-nous	-
12	W10347833		Trim, Door Side (black)		Appelez-nous	-
13	W10347850		Retainer, Shield-wool		Appelez-nous	-
14	W10348015		Bracket, Airwash Glass		Appelez-nous	-
15	W10350617		Bracket, Glass Spacer-door Glass (stainless Model Only)		Appelez-nous	-
16	W10348010		Seal, Door				$ 58.74
17	W10357317		Door Panel (stainless Model Only)		Appelez-nous	-
19	W10348011		Glass, Door Inner		Appelez-nous	-
20	3191514		Nameplate (black)				$ 53.29
20	W10852683		Nameplate (stainless)   (Replaces: W10113961)				$ 104.26
21	W10370042		Washer, Door (stainless Model Only)		Appelez-nous	-
22	W10370041		Screw, Door Handle ((stainless))		Appelez-nous	-
22	W10347857		Screw, Door Handle ((black))				$ 32.49
23	W10370043		Screw, Door Front		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
