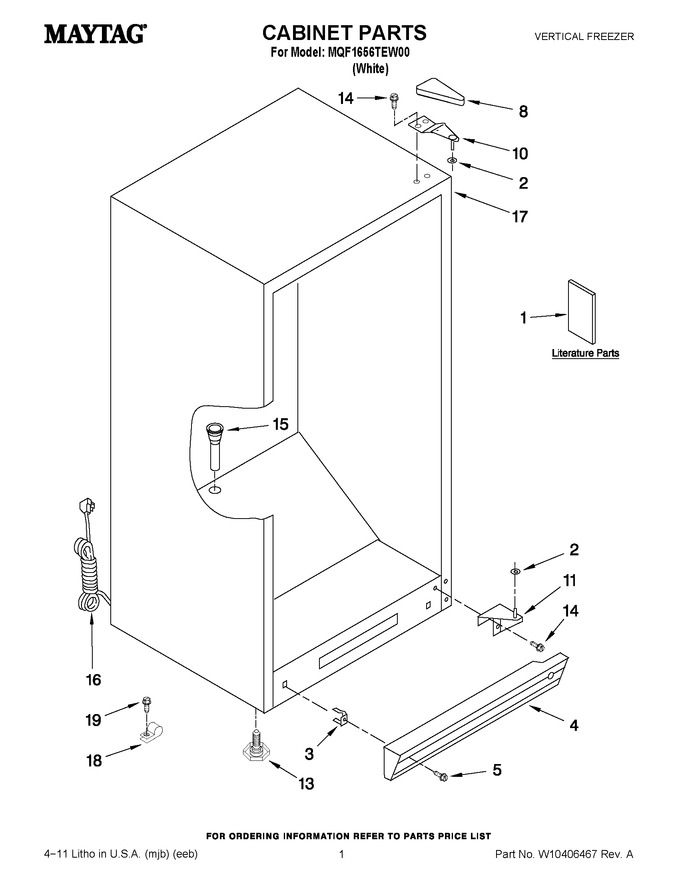

01 - Cabinet Parts
02 - Liner Parts
03 - Unit Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10404290 | Energy Label/tag |
|
- | |||||
| 1 | W10326798 | Owners Manual |
|
- | |||||
| 2 | W10851331 | Washer, Door Spacer (Replaces: 4390520) |
|
$ 9.51 | |||||
| 3 | 1-80247-101 | Clip, Grille (Replaces: 4356803) |
|
Immediately | $ 9.86 | ||||
| 4 | WP4-60461-005 | Grille (Replaces: 8210290) |
|
$ 100.70 | |||||
| 5 | WP489478 | Screw (Replaces: 4357243) |
|
$ 6.98 | |||||
| 8 | 4357279 | Cover, Hinge |
|
$ 46.56 | |||||
| 10 | 2-81016-105 | Hinge, Top |
|
$ 37.06 | |||||
| 11 | 4-82693-002 | Hinge, Bottom |
|
$ 72.12 | |||||
| 13 | WP3-82710-001 | Leg, Leveler (Replaces: W10205065) |
|
Immediately | $ 18.29 | ||||
| 14 | WP8204624 | Screw (Replaces: 4356830) |
|
$ 14.99 | |||||
| 15 | W10164544 | Grommet, Drain |
|
- | |||||
| 16 | 8210403 | Cord-power |
|
- | |||||
| 17 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 18 | 488946 | Clamp, Tube (Replaces: 4356643) |
|
$ 18.41 | |||||
| 19 | 3-24004-049 | Screw (Replaces: 4356583) |
|
- |
