| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

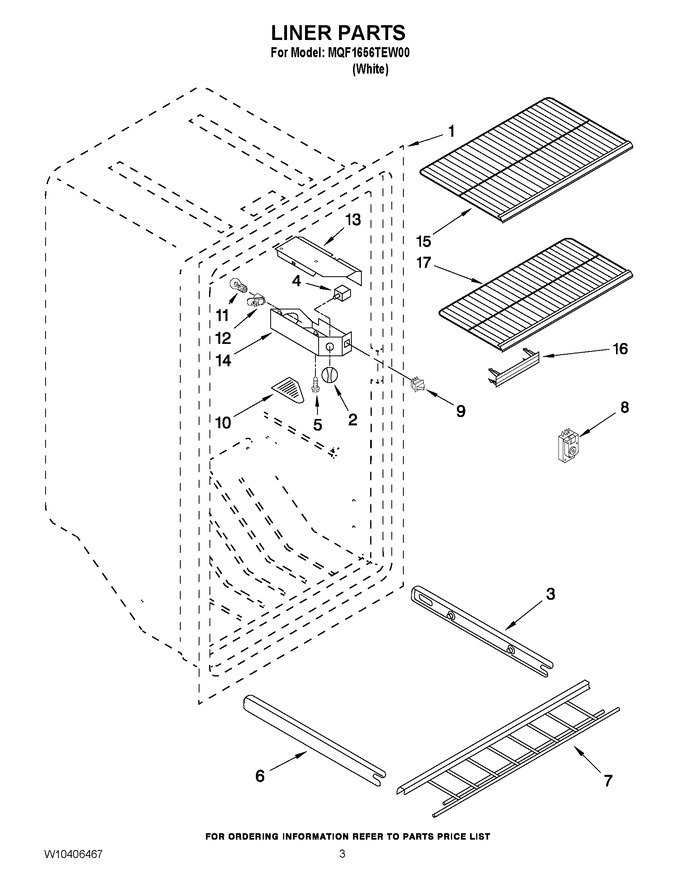

| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 3-82390-001 | Knob, Control (Replaces: 8210348) |
|
$ 25.80 | |||||
| 3 | 4-80576-201 | Support Rh |
|
- | |||||
| 4 | WP4-83053-002 | Thermostat |
|
$ 220.05 | |||||
| 5 | 4390798 | Screw |
|
- | |||||
| 6 | 4-80576-202 | Support Lh |
|
$ 25.63 | |||||
| 7 | 4357163 | Gate |
|
- | |||||
| 8 | WP3-81329 | Timer, Defrost (Replaces: 4357124) |
|
Immediately | $ 170.69 | ||||
| 9 | W11384469 | Switch, Light (Replaces: 4390513) |
|
Immediately | $ 33.51 | ||||
| 10 | 8210349 | Lens Light |
|
$ 33.01 | |||||
| 11 | W11679940 | Bulb, Light (Replaces: 4390465) |
|
Immediately | $ 10.17 | ||||
| 12 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 99.14 | ||||
| 13 | 8210351 | Shield, Light |
|
$ 42.03 | |||||
| 14 | 8210406 | Box, Control |
|
- | |||||
| 15 | W10297045 | Shelf, Upper Wire |
|
- | |||||
| 16 | WP3-80414-103 | Vent Plug (4) (Replaces: 4357295) |
|
$ 11.57 | |||||
| 17 | W10297044 | Shelf, Lower Wire |
|
- |
