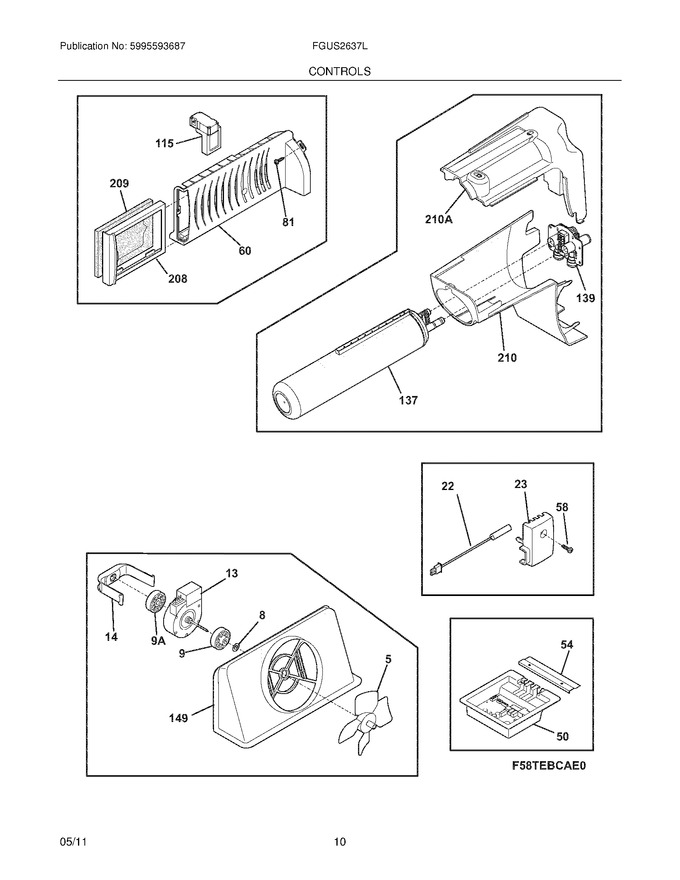

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | 215474201 | Washer,``slinger`` ,nylon ,evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241563601 | Bushing-motor Mtg |
|
Immediately | $ 17.72 | ||||
| 14 | 242135301 | Clip,evap Fan Motor (Replaces: 241517701) |
|
$ 7.79 | |||||
| 23 | 241845401 | Housing-sensor |
|
- | |||||
| 54 | 241532401 | Channel |
|
$ 30.47 | |||||
| 58 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 60 | 242010601 | Housing-diffuser & Air Filter |
|
$ 68.46 | |||||
| 81 | 218843801 | Screw,hx Wshr Hd Sems ,8-15a X 0.625 (Replaces: 5304455658) |
|
$ 14.41 | |||||
| 115 | 241853801 | Damper Assy,w/seal |
|
$ 157.35 | |||||
| 137 | ULTRAWF | Filter-water,carbon (Replaces: 241791601) |
|
Immediately | $ 109.49 | ||||
| 139 | 242009604 | Base-water Filter (Replaces: 242009601) |
|
Immediately | $ 33.14 | ||||
| 149 | 241563501 | Shroud-fan Orfice |
|
- | |||||
| 208 | 241754301 | Sleeve,air Filter ,front |
|
$ 38.28 | |||||
| 209 | EAFCBF | Filter-air (Replaces: 242047801) |
|
Immediately | $ 27.64 | ||||
| 210 | 241983812 | Housing-water Filtr (Replaces: 241983801) |
|
$ 79.62 | |||||
| 9A | 241845301 | Bushing-motor Mtg |
|
$ 22.68 | |||||
| F13 | 809069220 | Motor,evaporator Fan (Replaces: 241509402) |
|
Immediately | $ 154.14 | ||||
| F149 | 241528306 | Seal,shroud |
|
- | |||||
| F210 | 241998303 | Mount-water Filter (Replaces: 241998302) |
|
$ 14.41 | |||||
| F22 | 240597220 | Sensor (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| F5 | 5308000010 | Fan Blade,red ,evaporator Fan |
|
Immediately | $ 49.03 | ||||
| F50 | 5304499076 | Board-main Power (Replaces: 242009028) |
|
Immediately | $ 290.46 | ||||
| NI | 241852501 | Clip,wiring Harness |
|
$ 15.60 | |||||
| NI | 241794401 | Diffuser-air |
|
$ 25.94 | |||||
| NI | 241945101 | Insulation-air Duct |
|
$ 19.85 | |||||
| NI | 3205266 | Edge Protector, Wiring Harness |
|
$ 80.09 | |||||
| NI | 5304535377 | Tape,aluminum ,3`` Wide (Replaces: 240570304) |
|
$ 31.36 |
