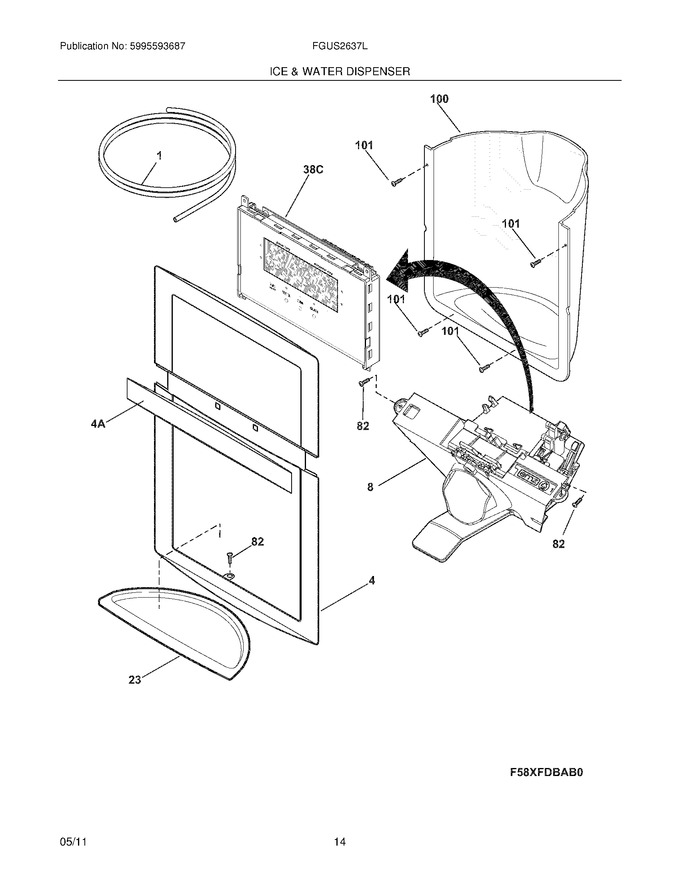

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water-door			Immediately	$ 60.25
4	242034201		Cover-module,white		Appelez-nous	-
23	242092401		Drip Tray,white		Appelez-nous	-
82	240363403		Screw,8-18 X 0.500 ,2		Appelez-nous	-
100	241753303		Liner-sump,white		Appelez-nous	-
101	5304453707		Screw,plask ,no.8-18 X .500   (Replaces: 240363402)			Immediately	$ 15.92
4A	242033901		Trim,facade ,white		Appelez-nous	-
F38C	242115113		Board-control		Appelez-nous	-
F8	242074214		Module-dispenser,white   (Replaces: 242074202)				$ 256.57
FNI	5303918596		Dispenser Heater Kit,115   (Replaces: 5303918371)				$ 317.38
NI	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker			Immediately	$ 20.56
NI	241850615		Tube-water Inlet,inlet Valve ,to I/m Inlet   (Replaces: 218976915)				$ 34.73
NI	218976429		Tube-water Inlet,97.50`` ,brown/tan				$ 40.40
NI	218976419		Tube-water Inlet,valve To Door				$ 22.68
