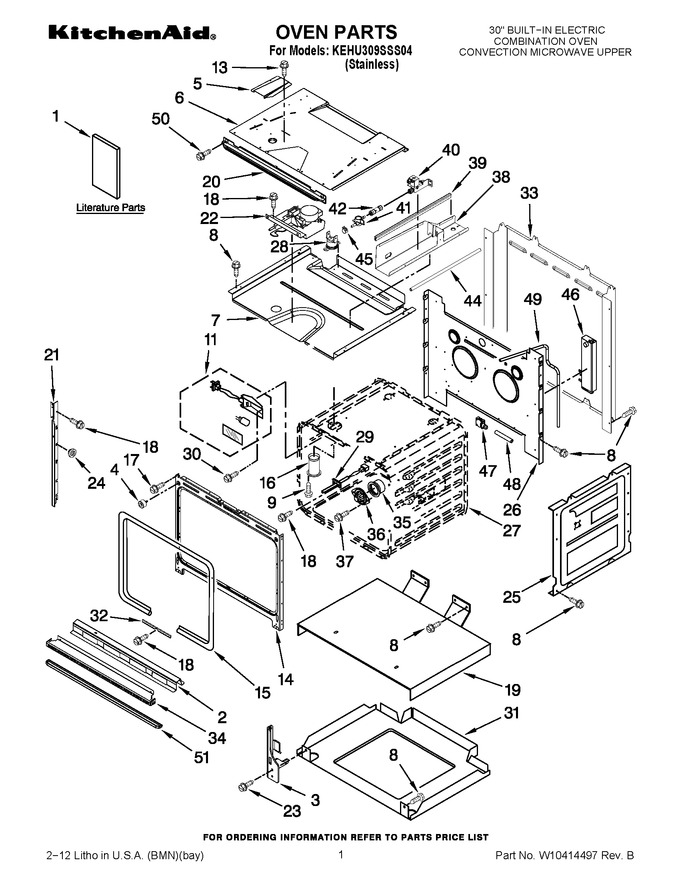

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10138787		Bi-lingualuse & Care Guide (microwave)		Appelez-nous	-
1	W10075750		Installation Instructions (bi-lingual)		Appelez-nous	-
1	W10220958		Tech Sheet (english)		Appelez-nous	-
1	W10220959		Tech Sheet (french)		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	W10162201		Bi-lingualuse & Care Guide (oven)		Appelez-nous	-
1	W10140564		Installation Instructions (english)		Appelez-nous	-
2	W10153090		Bracket, Base				$ 35.56
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 107.47
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 103.82
4	W10105790		Bumper, Door				$ 6.35
5	8303829		Exhaust,vent Slope				$ 7.99
6	W10181196		Divider, Vent		Appelez-nous	-
7	W10204470		Top Chassis		Appelez-nous	-
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
11	WP4448972		Oven Light, Assembly   (Replaces: 4448972)				$ 98.46
13	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
14	W10115861		Frame, Front		Appelez-nous	-
15	WP8304493		Gasket, Door   (Replaces: 8304493)				$ 160.62
16	W10861715		Tube, Vent   (Replaces: 4452158)				$ 104.97
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
18	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
19	4451478		Support, Insulation				$ 54.10
20	8303685		Center Vent				$ 61.46
21	8303679BL		Mounting Rail, Side (right)				$ 48.29
21	8303680BL		Mounting Rail, Side (left)				$ 35.54
22	W11029221		Latch, Mortorized   (Replaces: W10195935)			Immediately	$ 280.85
23	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
24	WP4448444		Mounting Grommet,rail   (Replaces: 4448444)				$ 6.73
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 129.16
26	W10153104		Back, Chassis		Appelez-nous	-
27	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
28	WP8304452		Thermal Fuse   (Replaces: 8304452)			Immediately	$ 104.76
29	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 86.25
30	4449748		Screw				$ 12.20
31	8303516		Base, Chassis		Appelez-nous	-
32	W10153361		Retainer, Gasket				$ 64.80
33	8303517		Cover, Back				$ 73.96
34	W10237368		Trim, Bottom Vent				$ 68.58
35	9758597		Orifice, Boiler Slip Fit				$ 42.82
36	W10153098		Cover, Boiler Orifice				$ 36.81
37	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
38	W10155510		Enclosure		Appelez-nous	-
39	W10077010		Gasket, Enclosure		Appelez-nous	-
40	W10111418		Valve, Solenoid				$ 151.74
41	WPW10076760		Sensor, Conductivity Slip Fit   (Replaces: W10076760)				$ 189.12
42	W10169348		Bracket, Thermostat				$ 8.32
44	W10076910		Tubing		Appelez-nous	-
45	WP489503		Clamp, Crimp   (Replaces: 9761146)			Immediately	$ 9.68
46	8186352		Boiler Assembly   (Replaces: 9758598)				$ 296.08
47	W10194453		Switch, Pressure				$ 254.00
48	WPW10076930		Hose (includes Clamp)   (Replaces: W10076930)				$ 23.82
49	W10142627		Tube-copper, Steam				$ 65.78
50	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
51	W10133474		Basin, Bottom Vent				$ 68.87
NI	W10141379		Insulation, Back		Appelez-nous	-
NI	8303965		Insulation, Wrap				$ 54.21
