01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts


06 - Cabinet And Stirrer Parts


07 - Internal Microwave Parts


08 - Microwave Door Parts


09 - Optional Parts

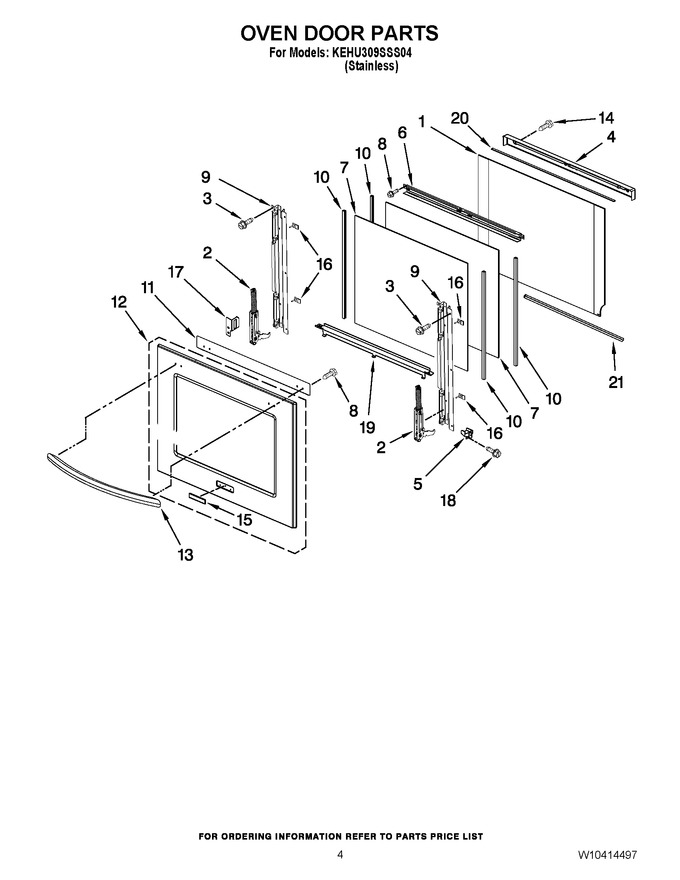

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303737BL		Door Liner		Appelez-nous	-
2	W10174285		Hinge, Door				$ 46.16
3	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 6.98
4	8304581BL		Vent, Door Top				$ 72.64
5	8304378		Bracket, Door (left)				$ 83.98
5	8304377		Bracket, Door (right)				$ 40.81
6	8303746		Door, Top Bracket				$ 91.01
7	8303731		Glass, Inner				$ 98.49
8	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
9	8303745BL		Frame, Door Side				$ 70.23
10	W10754409		Seal   (Replaces: 8304523)				$ 66.83
11	8304360BL		Bracket, Handle				$ 53.71
12	W10237350		Door Glass, Assembly		Appelez-nous	-
13	W10292380		Door Handle				$ 117.19
14	WPY706189		Screw   (Replaces: W10143950)			Immediately	$ 6.47
15	WPW10243391		Badge   (Replaces: W10243391)				$ 49.98
16	8304522		Bumper, Glass				$ 31.91
17	W10137043		Cover,hinge (left)				$ 39.01
17	W10137044		Cover,hinge (right)				$ 38.61
18	WPY706189		Screw   (Replaces: W10143950)			Immediately	$ 6.47
19	W10143334		Bracket, Air Glass				$ 32.61
20	W10754473		Seal   (Replaces: W10253472)				$ 23.03
21	W10143261		Gasket, Door		Appelez-nous	-
