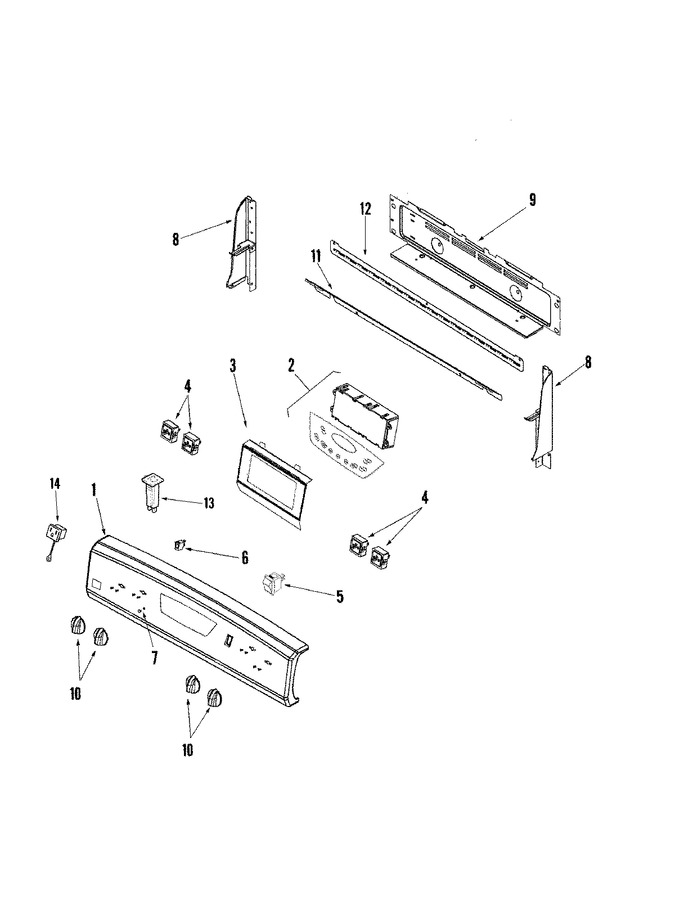

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74010988		Panel, Control (blk)	10	Appelez-nous	-
2	5701M760-60		Clock W/overlay (blk)   (Replaces: 74010295)	10			$ 379.39
2	WP74003976		Screw, Shoulder   (Replaces: 74003976)	10			$ 6.47
3	WP74003976		Screw, Shoulder   (Replaces: 74003976)	10			$ 6.47
3	74009052		Bracket, Clock	10	Appelez-nous	-
4	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 6.26
4	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	10		Immediately	$ 35.10
4	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	10		Immediately	$ 57.78
5	74008718		Switch, Rocker (blk)	10			$ 50.46
6	WP74004153		Light, Indicator   (Replaces: 74004153)	10		Immediately	$ 8.02
7	WP7730P011-60		Lens, Indicator Light   (Replaces: 7730P011-60)	10			$ 5.16
8	74010201		Support, Backguard (rt-blk)	10	Appelez-nous	-
8	WP98008545		Screw (blk)   (Replaces: 74009537)	10			$ 15.94
8	74010202		Support, Backguard (lt-blk)	10	Appelez-nous	-
8	WP74003976		Screw, Shoulder   (Replaces: 74003976)	10			$ 6.47
9	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
9	74009335		Cover, Backguard Wire	10	Appelez-nous	-
9	74009943		Cover, Rear Wire (upr)	10	Appelez-nous	-
10	74008731		Knob (blk)	10			$ 67.30
11	74009701		Shield, Rear Sight	10	Appelez-nous	-
11	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
12	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
12	74009976		Baffle, Oven Door	10	Appelez-nous	-
13	71003070		Breaker, Circuit (blk)	10	Appelez-nous	-
14	71003068		Receptacle, Outlet (blk)	10	Appelez-nous	-
