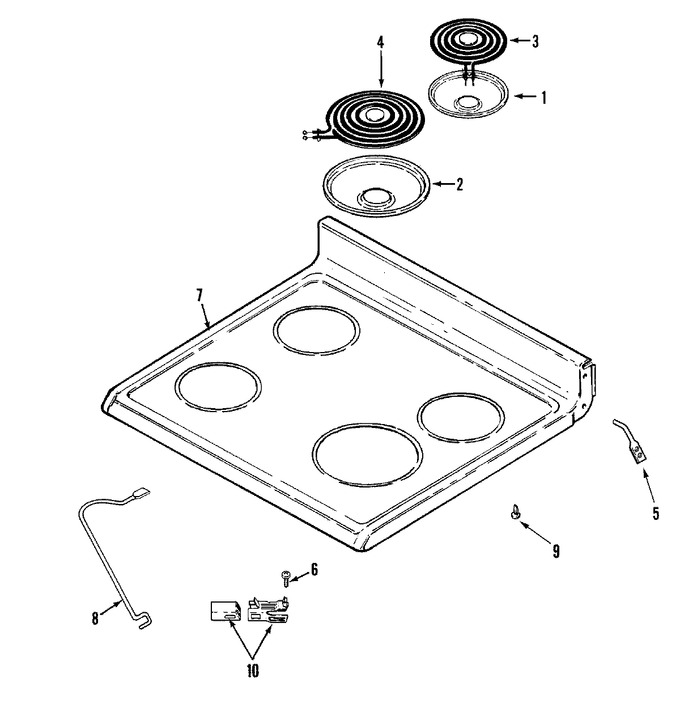

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10290353RW | Bowl, Drip (6`` W/hole-blk) (Replaces: 74004068) | 10 |
|
Immediately | $ 19.27 | |||
| 1 | W10290353RW | Bowl, Drip (6`` Blk) (Replaces: Y04100392) | 10 |
|
Immediately | $ 19.27 | |||
| 2 | WPW10290350 | Bowl, Drip (8`` Blk) (Replaces: Y04100393) | 10 |
|
Immediately | $ 15.25 | |||
| 3 | WPW10259868 | Element, Surface (6``) (Replaces: 74007157) | 10 |
|
Immediately | $ 112.28 | |||
| 4 | WPW10345410 | Element, Surface (8``) (Replaces: 74007156) | 10 |
|
Immediately | $ 165.96 | |||
| 5 | 74003371 | Hinge, Main Top (rod) | 10 |
|
- | ||||
| 5 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | WP74004005 | Screw, 6-32 X 5/16`` (Replaces: 74004005) | 10 |
|
$ 6.95 | ||||
| 7 | 74003582 | Top, Main (blk) | 10 |
|
- | ||||
| 8 | 74004084 | Prop Rod | 10 |
|
- | ||||
| 9 | W11189172 | Glide, Main Top (Replaces: 74004558) | 10 |
|
Immediately | $ 15.09 | |||
| 10 | 12001676 | Receptacle Assy. | 10 |
|
Immediately | $ 28.45 |
