01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Chassis Parts


04 - Top Venting Parts


05 - Oven Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts

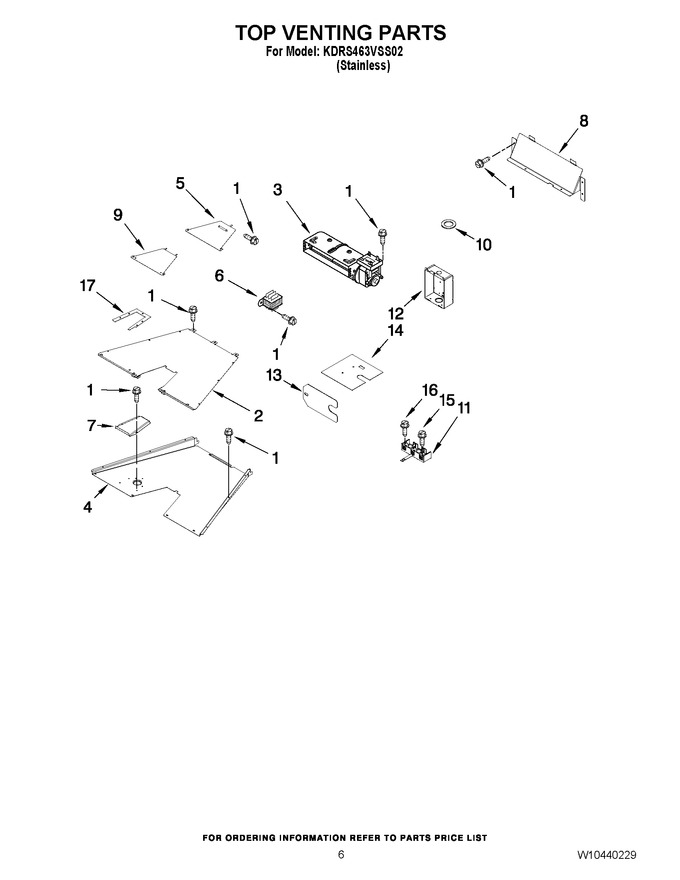

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.15
2	W10160896		Vent, Top		Appelez-nous	-
3	WPW10245511		Blower 60mm   (Replaces: W10245511)			Immediately	$ 275.42
4	W10246078		Vent-bottom		Appelez-nous	-
5	W10160875		Plate, Latch		Appelez-nous	-
6	WPW10111628		Transformer, Control   (Replaces: W10111628)				$ 254.91
7	W10246075		Vent, Exhaust		Appelez-nous	-
8	W10160844		Bracket, Blower		Appelez-nous	-
9	W10160858		Cover, Latch				$ 65.95
10	W10270396		Seal, Chimney		Appelez-nous	-
11	WP9761958		Block, Terminal   (Replaces: 9761958)			Immediately	$ 39.72
12	W10467022		Box, Terminal		Appelez-nous	-
13	W10618712		Cover, Channel   (Replaces: W10269198)		Appelez-nous	-
14	9759721		Insulator, Terminal Box		Appelez-nous	-
15	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
16	WP3196163		Screw   (Replaces: 3196163)				$ 6.26
17	W10270397		Seal, Foam		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
