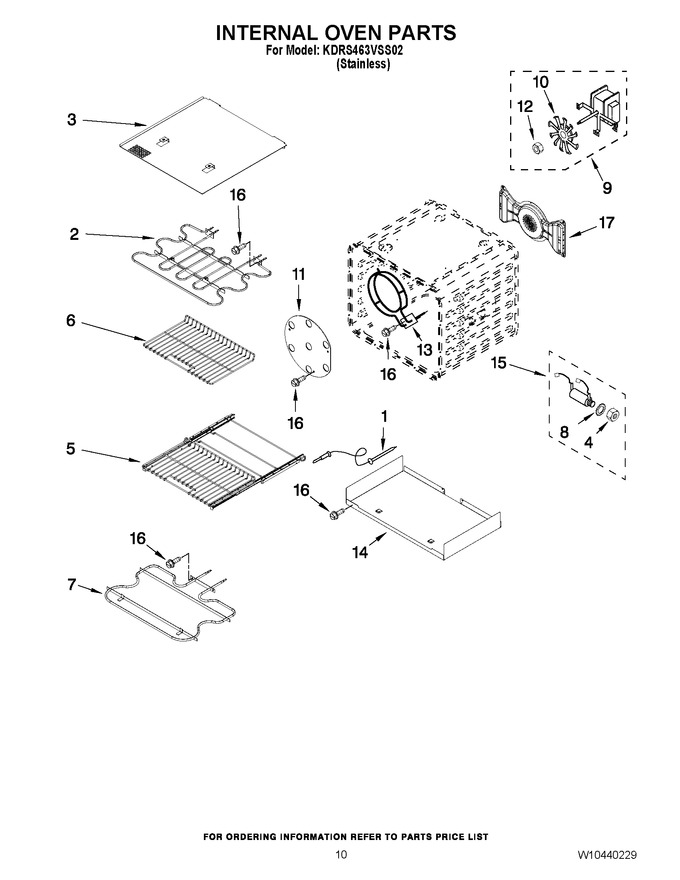

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9755542 | Probe, Meat (Replaces: 9755542) |
|
Immediately | $ 82.91 | ||||
| 2 | W10857686 | Element, Broil (Replaces: W10115991) |
|
$ 293.86 | |||||
| 3 | W10160857 | Shield, Broil |
|
$ 134.74 | |||||
| 4 | WP9755546 | Locknut (Replaces: 9755546) |
|
$ 6.26 | |||||
| 5 | W10212435 | Rack, Sliding |
|
- | |||||
| 6 | W10822069 | Rack, Oven (Replaces: W10277392) |
|
Immediately | $ 113.69 | ||||
| 7 | W10860270 | Element, Hidden Bake (Replaces: W10115992) |
|
Immediately | $ 171.12 | ||||
| 8 | WP9755547 | Washer (Replaces: 9755547) |
|
$ 5.49 | |||||
| 9 | W10794022 | Motor, Convection (Replaces: W10116228) |
|
Immediately | $ 193.17 | ||||
| 10 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.12 | ||||
| 11 | W10261523 | Cover, Fan |
|
$ 66.73 | |||||
| 12 | WPW10116349 | Nut (Replaces: W10116349) |
|
$ 18.67 | |||||
| 13 | W11643125 | Element, Convection (Replaces: 9762242) |
|
Immediately | $ 108.72 | ||||
| 14 | W10160872 | Tray, Hidden Bake |
|
$ 71.73 | |||||
| 15 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 97.22 | ||||
| 16 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 17 | W10860133 | Baffle, Convection (Replaces: W10160868) |
|
$ 219.39 |
