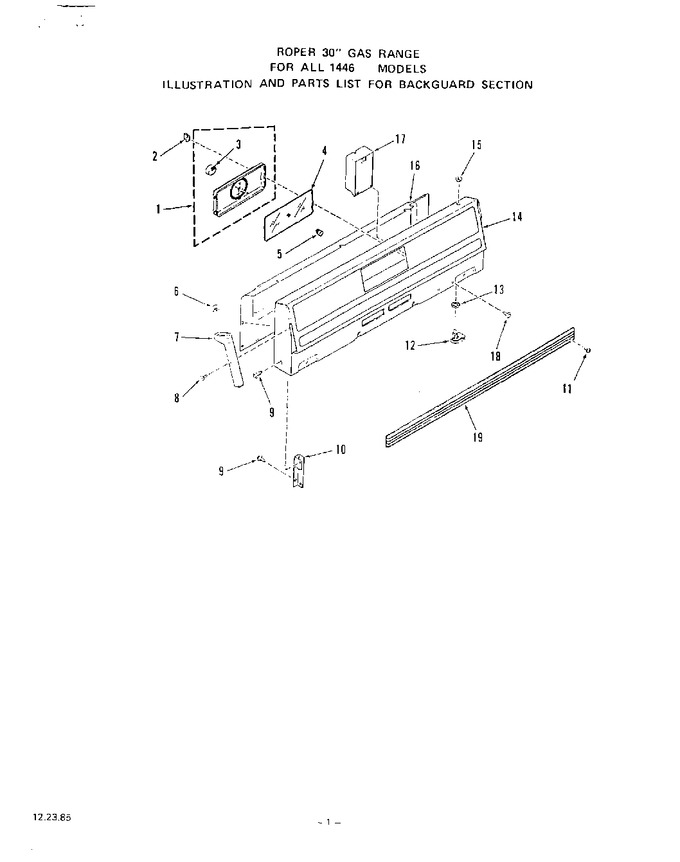

01 - Backguard


02 - Main Top


03 - Burner


04 - Body


05 - Griddle


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327536		Clock W/4 Hr. Timer (inc`s. Key 3) (14460a Models)		Appelez-nous	-
1	333603		Clock W/4 Hr. Timer (inc`s. Key 3) (14451a Models)		Appelez-nous	-
2	326329		Clip-clock (4 Req)		Appelez-nous	-
3	283296		Clock Motor		Appelez-nous	-
4	323176		Clock Glass (14460a Models)		Appelez-nous	-
4	333690		Clock Glass (14461a Models)		Appelez-nous	-
5	109225		Knob-clock (start & Stop Time)		Appelez-nous	-
6	70588		Clip		Appelez-nous	-
7	326283		End Cap (left)		Appelez-nous	-
7	326282		End Cap (right)		Appelez-nous	-
8	327621		Screw 6-32x3/8``		Appelez-nous	-
9	327320		Screw 10-16x7/16``		Appelez-nous	-
10	327107		Support-backguard (left)		Appelez-nous	-
10	327106		Support-backguard (right)		Appelez-nous	-
11	329382		Screw 6-20x3/8``		Appelez-nous	-
12	298793		Push Switch		Appelez-nous	-
13	236129		Pal Nut 3/8-27		Appelez-nous	-
14	333375		Panel-backguard		Appelez-nous	-
15	87403		Knurled Nut		Appelez-nous	-
16	320767		Wire Cover-backguard		Appelez-nous	-
17	326136		Module - Spark Igniter		Appelez-nous	-
18	329676		Screw 13-16 X 1/2``		Appelez-nous	-
19	329236		Trim-crosstie		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
