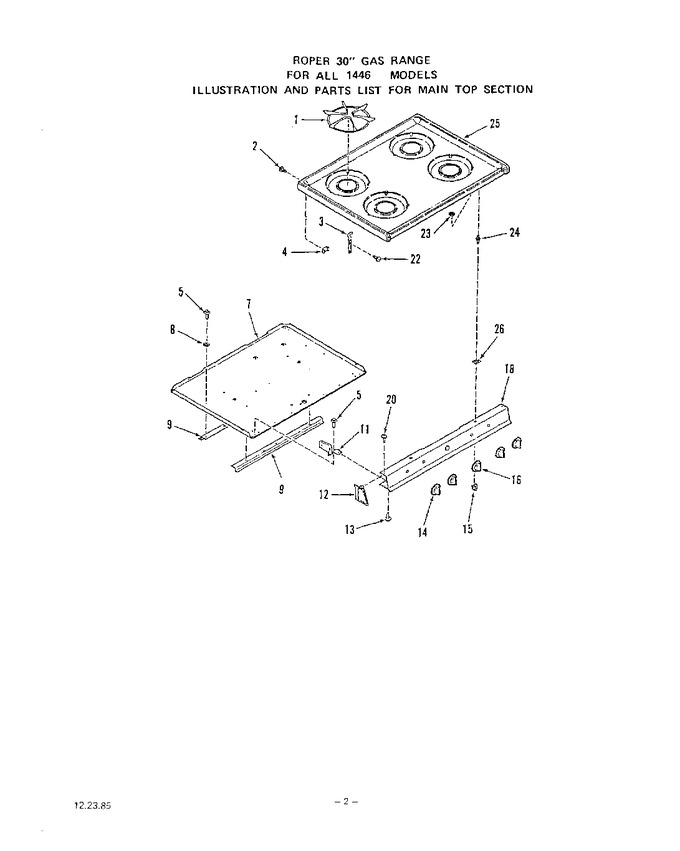

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316786		Top Grate (4 Required)		Appelez-nous	-
2	316849		Screw-10-32x1/2``		Appelez-nous	-
3	320921		Hinge-main Top (right)		Appelez-nous	-
3	320922		Hinge-main Top (left)		Appelez-nous	-
4	327403		Bracket-main Top Hinge (lt. Or Rt.)		Appelez-nous	-
5	327320		Screw 10-16x7/16``		Appelez-nous	-
7	331575		Burner Box Bottom		Appelez-nous	-
8	106462		Washer		Appelez-nous	-
9	327705		Stiffener-burner Box Bottom (front)		Appelez-nous	-
9	329158		Stiffener-burner Box Bottom (rear)		Appelez-nous	-
11	328808		Bracket-manifold Panel (left)		Appelez-nous	-
11	328924		Bracket-manifold Panel (right)		Appelez-nous	-
12	328499		End Cap-manifold Panel (left)		Appelez-nous	-
12	328498		End Cap-manifold Panel (right)		Appelez-nous	-
13	326974		Screw 10abx1/2``		Appelez-nous	-
14	329412		Knob-gas Valve (4 Req)		Appelez-nous	-
15	24667		Catch-main Top Strike (2 Required)		Appelez-nous	-
16	331768		Knob-thermostat		Appelez-nous	-
18	331763		Manifold Panel		Appelez-nous	-
20	327621		Screw 6-20x3/8``		Appelez-nous	-
22	321162		Screw 10-32 X 3/4``		Appelez-nous	-
23	239764		Keps Nut 8-32		Appelez-nous	-
24	299784		Strike (2 Required)		Appelez-nous	-
25	328911		Main Top (almond)		Appelez-nous	-
25	328907		Main Top (white)		Appelez-nous	-
26	310218		Washer (2 Required)		Appelez-nous	-
