New Model Search:

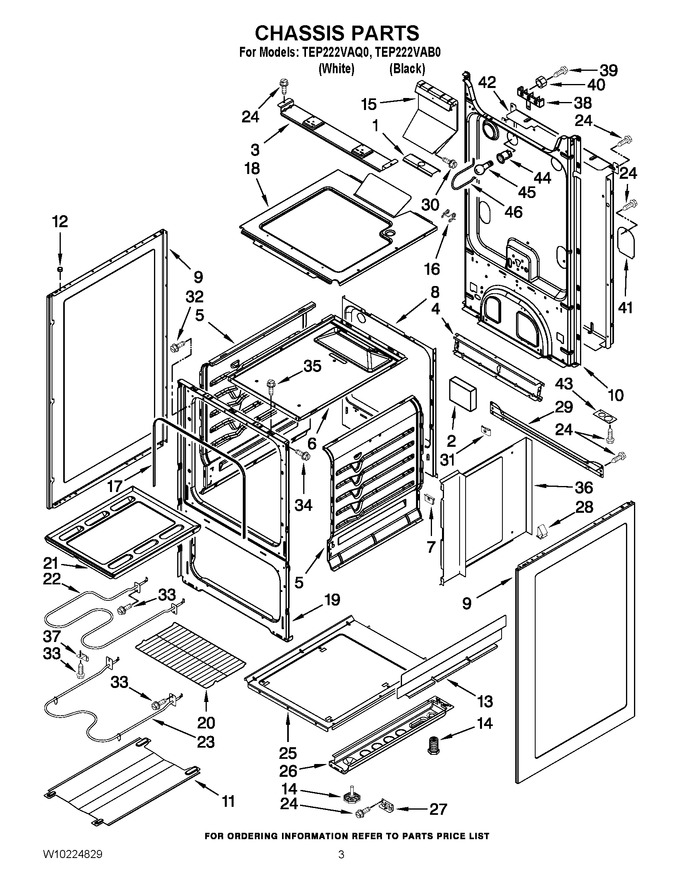

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10176276 | Cover, Flue Box |
|
- | |||||
| 2 | W10185442 | Counter Weight |
|
- | |||||
| 3 | W10168363 | Support, Burner |
|
- | |||||
| 4 | 98012912 | Support, Oven |
|
- | |||||
| 5 | 98004452 | Side, Oven (right Side) |
|
- | |||||
| 5 | 98004451 | Side, Oven (left Side) |
|
- | |||||
| 6 | 98004448 | Top, Oven |
|
- | |||||
| 7 | 98005502 | Clip, Oven Botton |
|
$ 12.10 | |||||
| 8 | W10175662 | Cover, Rear |
|
- | |||||
| 9 | W11501467 | Panel, Side (white) (Replaces: 98010061) |
|
- | |||||
| 9 | 98010059 | Panel, Side (black) |
|
- | |||||
| 10 | W10166296 | Back, Main |
|
- | |||||
| 11 | 98015099 | Diverter, Heat |
|
$ 243.31 | |||||
| 12 | W10207167 | Bumper, Cooktop |
|
- | |||||
| 13 | 98007191 | Shield, Heat (lower) |
|
- | |||||
| 14 | WP3196037 | Leg, Leveler (front) (Replaces: W10153610) |
|
$ 74.67 | |||||
| 14 | WPW10058460 | Leg, Leveler (rear) (Replaces: W10058460) |
|
Immediately | $ 7.07 | ||||
| 15 | WPW10116396 | Flue, Assembly (Replaces: W10116396) |
|
$ 80.13 | |||||
| 16 | 98013690 | Spring, Torsion (flue Box) |
|
- | |||||
| 17 | W10170595 | Seal, Door |
|
- | |||||
| 18 | W10208539 | Box, Burner |
|
- | |||||
| 19 | 98006752 | Frame, Front |
|
- | |||||
| 20 | W11223841 | Rack, Oven (Replaces: 98016942) |
|
$ 95.09 | |||||
| 21 | W10192836 | Bottom, Oven |
|
- | |||||
| 22 | W10170571 | Element, Broil |
|
- | |||||
| 23 | WPW10163272 | Element, Bake (Replaces: W10163272) |
|
$ 123.97 | |||||
| 24 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.07 | |||||
| 25 | 98003945 | Baffle, Base |
|
- | |||||
| 26 | 98003830 | Rail, Base |
|
- | |||||
| 27 | 98007126 | Support, Foot |
|
- | |||||
| 28 | W11229684 | Clip, Cooktop (Replaces: 98004722) |
|
$ 10.67 | |||||
| 29 | 98010054 | Support, Rear |
|
- | |||||
| 30 | 98006634 | Screw |
|
- | |||||
| 31 | 98009179 | U - Nut |
|
$ 12.02 | |||||
| 32 | WP98008545 | Screw (Replaces: 98008545) |
|
$ 15.94 | |||||
| 33 | W11233072 | Screw (Replaces: 98006632) |
|
Immediately | $ 12.62 | ||||
| 34 | WP3400805 | Screw (Replaces: 98004219) |
|
$ 6.47 | |||||
| 35 | WP3400805 | Screw (Replaces: 98015526) |
|
$ 6.47 | |||||
| 36 | 98017387 | Baffle, Side |
|
- | |||||
| 37 | 98004973 | Support, Element |
|
- | |||||
| 38 | W10181453 | Block, Terminal |
|
$ 27.64 | |||||
| 39 | W11684512 | Screw (Replaces: W10179708) |
|
$ 12.69 | |||||
| 40 | WP112432 | Nut, Terminal Block (Replaces: W10204883) |
|
$ 7.16 | |||||
| 41 | W10209692 | Cover, Terminal Block |
|
- | |||||
| 42 | W10208152 | Cover, Main Rear |
|
- | |||||
| 43 | W10180177 | Plate, Conduit |
|
- | |||||
| 44 | W10856866 | Socket, Light (Replaces: W10114530) |
|
$ 6.47 | |||||
| 45 | 8009 | Bulb, Light (Replaces: 98004498) |
|
Immediately | $ 16.80 | ||||
| 46 | W10205700 | Protector, Light |
|
- | |||||
| NI | W11684778 | Insulation, Bottom (Replaces: W10177346) |
|
- | |||||
| NI | W11684784 | Insulation, Top (Replaces: W10207891) |
|
- | |||||
| NI | 98004294 | Wire Tie, Insulation |
|
- | |||||
| NI | W11684895 | Insulation, Wrap (Replaces: W10206735) |
|
- | |||||
| NI | W11684896 | Insulation, Back (Replaces: W10137234) |
|
- |
