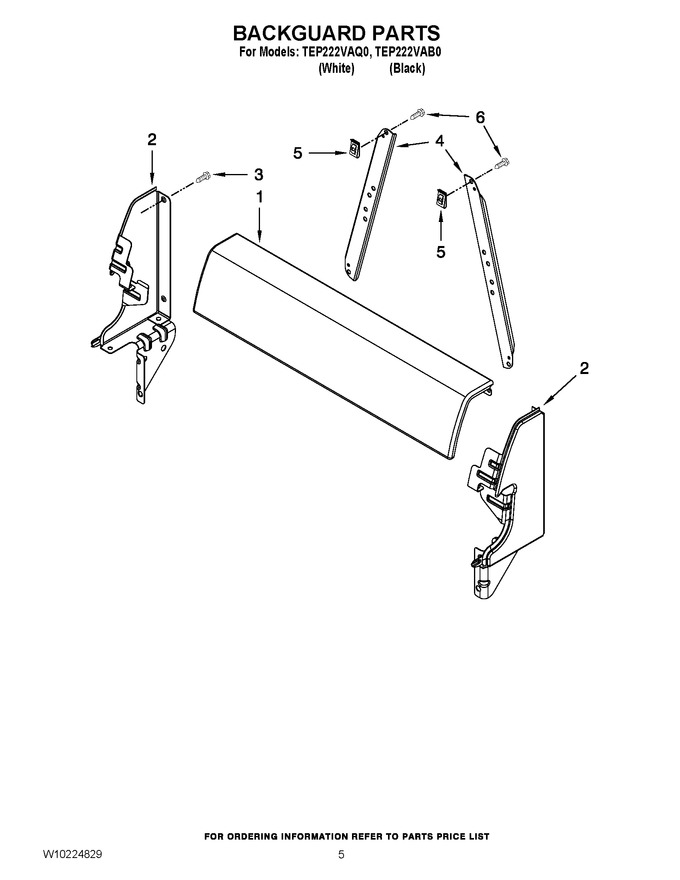

04 - Backguard Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98009820 | Trim, Top (black) |
|
- | |||||
| 1 | 98009821 | Trim, Top (white) |
|
- | |||||
| 2 | W10212836 | Endcap (left, Black) |
|
- | |||||
| 2 | W10212837 | Endcap (right, Black) |
|
- | |||||
| 2 | W10144828 | Endcap (left, White) |
|
- | |||||
| 2 | W10144829 | Endcap (right, White) |
|
- | |||||
| 3 | WP3400805 | Screw (4) (Replaces: 98015526) |
|
$ 6.47 | |||||
| 4 | W10145101 | Support, Backguard |
|
- | |||||
| 5 | 98009179 | U - Nut |
|
$ 12.02 | |||||
| 6 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.07 |
