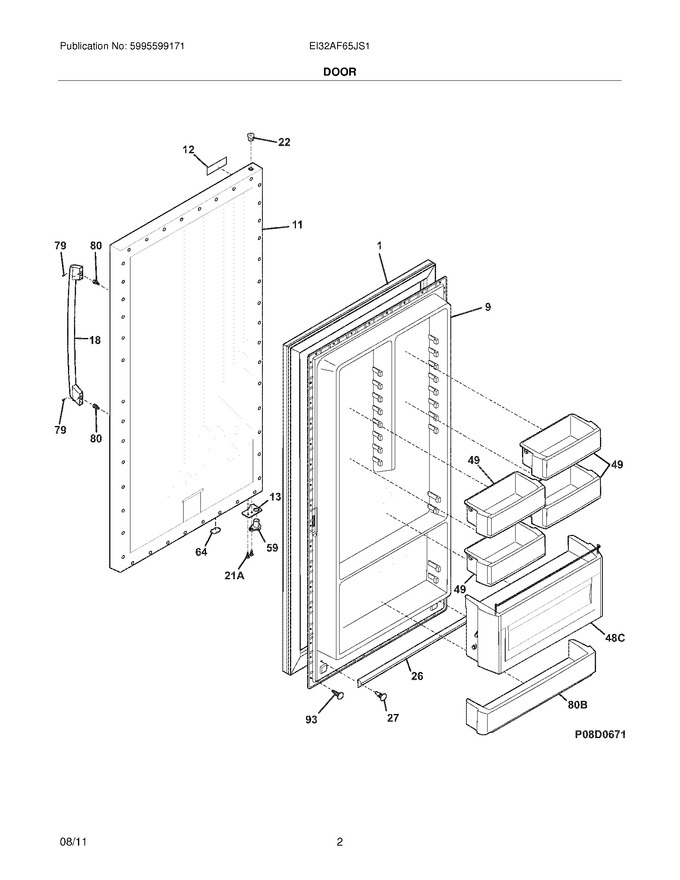

01 - Cover
03 - Door
05 - Cabinet
07 - System
09 - Ice Maker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505782 | Gasket-door,gray (Replaces: 216522370) |
|
Immediately | $ 235.60 | ||||
| 9 | 297280801 | Panel-inner Door,frzr |
|
$ 222.01 | |||||
| 11 | 297353503 | Panel-outer Door,stainless |
|
- | |||||
| 12 | 241873301 | Nameplate,electrolux ,stainless |
|
$ 11.15 | |||||
| 13 | 297302801 | Door Stop,lh |
|
$ 19.74 | |||||
| 18 | 241881309 | Handle-door,stainless |
|
$ 256.62 | |||||
| 22 | 216970801 | Bearing,hinge ,gray ,top |
|
$ 4.25 | |||||
| 26 | 216524201 | Gasket,secondary |
|
$ 49.62 | |||||
| 27 | 5304472186 | Clip,panel Mtg |
|
$ 11.57 | |||||
| 49 | 297291700 | Bin-door,2-liter |
|
$ 97.65 | |||||
| 59 | 297302900 | Bearing,door Stop |
|
$ 7.00 | |||||
| 64 | 216403700 | Plug-button,hole Filler ,door Base (Replaces: 216403701) |
|
$ 58.12 | |||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 93 | 216858001 | Screw,8-18x.50 Ab ,no.10 |
|
Immediately | $ 10.85 | ||||
| 21A | 297197500 | Screw,door Stop Mtg ,fh38-16x.750 ,p Twin |
|
$ 14.46 | |||||
| 48C | 297320700 | Bin-door,w/lid |
|
$ 620.34 | |||||
| 80B | 297292500 | Shelf,condiment |
|
$ 63.42 | |||||
| NI | 297355300 | Label,quick Start |
|
- | |||||
| NI | 297175300 | Wrench,allen |
|
$ 15.49 | |||||
| NI | 5304406520 | Clip,panel Mtg Kit ,(40) |
|
$ 125.83 | |||||
| NI | 240537301 | Nut-anchor,door Hdl Screw |
|
$ 11.34 |
