SELECT A DIAGRAM

01 - Cover


03 - Door

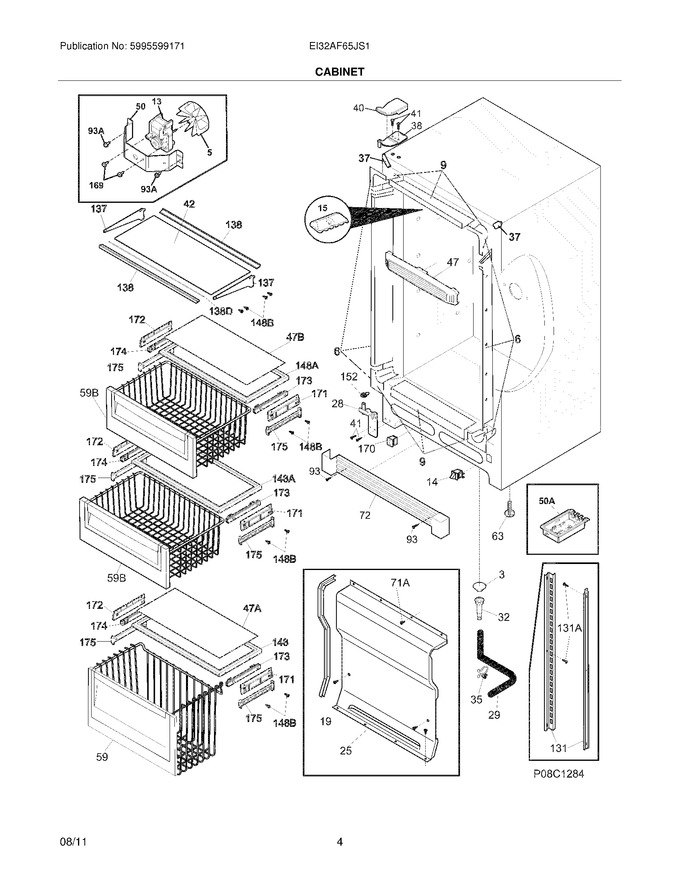

05 - Cabinet


07 - System


09 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	297259600		Fan Blade,evaporator				$ 9.50
6	297200900		Breaker Kit W/corners			Immediately	$ 70.85
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 59.28
14	216822900		Switch,light/lamp ,ramp   (Replaces: 216822901)			Immediately	$ 70.16
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
25	297099255		Cover-evaporator				$ 86.36
28	5303018741		Hinge-lower,lh W/bearing   (Replaces: 297302511)			Immediately	$ 42.12
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	216273000		Clip,wire Retainer				$ 22.42
37	297273903		Trim-cabinet Corner,silver Mist ,(2)		Appelez-nous	-
38	297303901		Hinge-upper,lh				$ 23.49
40	297304001		Cover-hinge,gray ,lh				$ 73.00
41	240578902		Screw,hex Head ,1/4-20x5/8 ,hinge   (Replaces: 297236250)			Immediately	$ 14.18
42	297296600		Shelf-glass				$ 115.03
47	297192903		Baffle,air   (Replaces: 297192900)			Immediately	$ 25.31
50	08013207		Bracket-fan Motor				$ 12.92
59	297304400		Basket,assy ,tall				$ 572.13
63	216396900		Screw,leveling Foot ,plastic ,adjustable			Immediately	$ 38.39
72	5304510562		Grille/kickplate,32``   (Replaces: 297332100)				$ 220.13
93	216858001		Screw,8-18x.50 Ab ,no.10			Immediately	$ 10.85
131	297327200		Channel-shelf Mtg,side ,(2)		Appelez-nous	-
137	297296511		Bracket-shelf   (Replaces: 297296510)				$ 85.76
138	297296300		Trim-shelf				$ 76.55
148	297288802		Frame,basket-cover ,tall				$ 219.45
152	297302700		Bearing-hinge		Appelez-nous	-
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
170	297280403		Valve,breather				$ 21.69
171	297092700		Bracket,crisper Cover ,rh				$ 55.36
172	297092701		Bracket,crisper Cover ,lh				$ 56.88
173	5304517648		Slide-basket,rh ,w/clips   (Replaces: 297291200)			Immediately	$ 72.30
174	5304517649		Slide-basket,lh ,w/clips   (Replaces: 297291201)				$ 78.08
175	297099500		Support,crisper			Immediately	$ 47.03
47A	297291300		Glass,crisper Cover			Immediately	$ 124.03
47B	297291301		Glass,crisper Cover			Immediately	$ 131.83
59B	297297500		Basket,assy-mid Level				$ 223.44
71A	297146820		Screw,8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.03
F13	297309000		Motor,fan ,115 V   (Replaces: 297250000)			Immediately	$ 55.32
F131	297146821		Screw,th ,8-18x.470 Ab Qx ,white ,(6)				$ 4.94
F138	297350900		Gasket,shelf				$ 18.08
F148	297142600		Screw,blunt ,8-32 X 5/8				$ 13.01
F148	297288803		Frame,basket ,mid-level				$ 230.35
F15	241891103		Light-led				$ 59.85
F50A	241852501		Clip,wiring Harness				$ 15.60
F50A	241891605		Board-led Power		Appelez-nous	-
NI	297333610		Trim Kit,built In ,dual ,complete ,trimkitss2		Appelez-nous	-
NI	216327800		Clip,wire		Appelez-nous	-
NI	297164650		Bracket,lh Leg Levelor				$ 18.43
NI	297305500		Clip,crisper				$ 13.42
NI	297330101		Energy Guide		Appelez-nous	-
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	297333510		Trim Kit,built In ,single ,complete ,trimkitss1		Appelez-nous	-
NI	297164651		Bracket,rh Leg Levelor				$ 17.51
