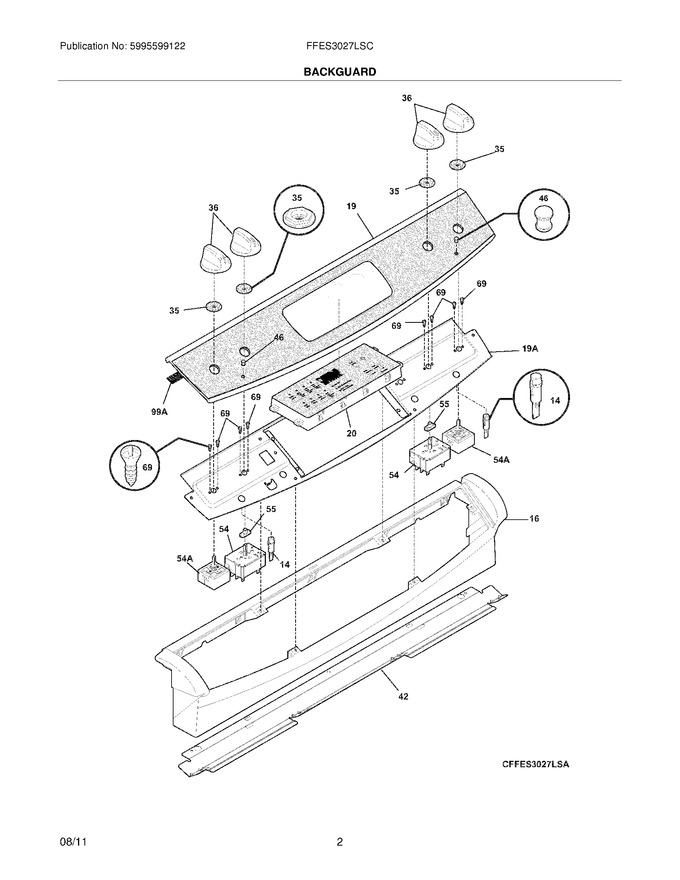

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318299102		Console,assy. ,black				$ 494.96
19	318935404		Control Panel Assembly,stainless/black ,w/overlay		Appelez-nous	-
35	318183105		Support,glass ,black ,(4)				$ 21.37
36	316543810		Knob,control ,black				$ 46.79
42	318574701		Support,control Panel ,black				$ 62.69
46	318228301		Lens,indicator Light				$ 11.29
55	318402901		Bushing,switch				$ 17.72
69	5304480396		Screw,8-32 X 3/8`` ,(4)				$ 11.34
19A	9910999SI		Panel,control Mtg.   (Replaces: 318224401)		Appelez-nous	-
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F14	318293901		Light,indicator ,125v ,(2)				$ 53.66
F20	318296835		Clock/timer,electronic ,es335 ,black ,w/overlay		Appelez-nous	-
F54	318293830		Switch,infinite ,(2)			Immediately	$ 94.36
F54A	318191023		Switch,infinite ,dual   (Replaces: 318191027)			Immediately	$ 70.64
FNI	318228873		Harness,wiring ,main ,backguard				$ 144.64
FNI	318224876		Harness,wiring ,timer				$ 120.96
FNI	318231880		Harness,wiring ,jumper				$ 14.18
NI	5303323136		Screw Ground		Appelez-nous	-
NI	318214527		Overlay,control ,black ,es335		Appelez-nous	-
NI	5304447071		Clip,console ,(2)		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
