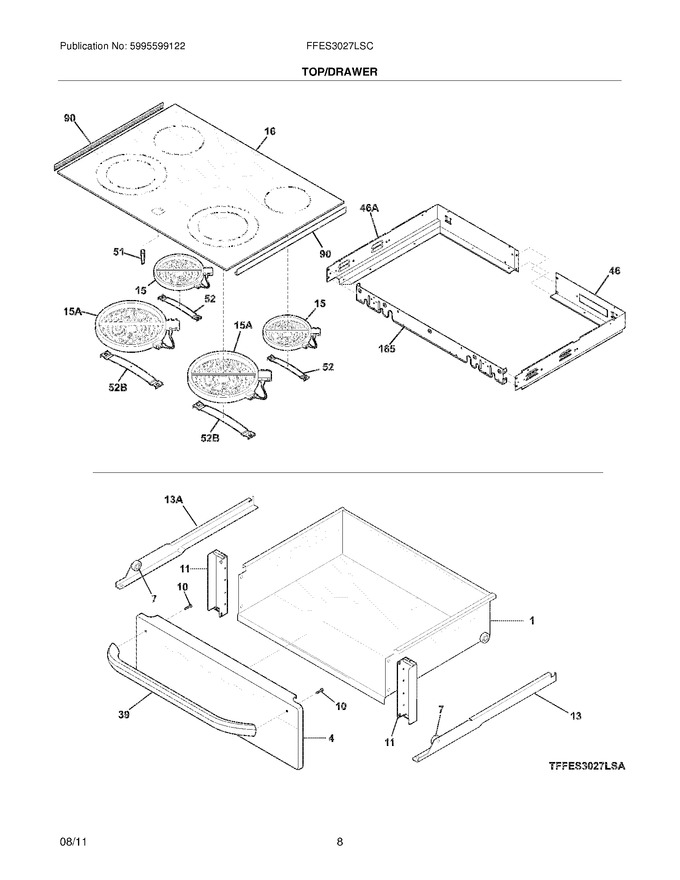

07 - Top/drawer


09 - Door


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107105)			Immediately	$ 143.39
4	318298812		Panel,drawer ,stainless ,front				$ 364.09
7	318332200		Roller,nylon		Appelez-nous	-
10	5304414648		Screw,10-24 ,(2)   (Replaces: 5303308458)				$ 14.18
11	318298600		Bracket,drawer Support ,(2)				$ 62.69
13	318018100		Channel,drawer ,rh			Immediately	$ 30.01
16	318590603		Main Top,assembly ,glass ,black		Appelez-nous	-
39	316558201		Handle,door ,stainless   (Replaces: 316558200)				$ 174.23
46	318568200		Box,burner ,rh				$ 23.99
52	318122006		Spring,element Mtg ,small				$ 66.25
90	318368001		Channel,glass Protector ,(2)				$ 22.98
165	318227520		Plate,mounting				$ 47.99
13A	318018101		Channel,drawer ,lh				$ 63.11
46A	318568201		Box,burner ,lh				$ 28.93
52B	318122010		Spring,element Mtg ,3000w				$ 62.51
F15	318178110		Element,surface ,6`` ,1200w ,(2) ,radiant   (Replaces: 318198830)			Immediately	$ 122.86
F15A	316555800		Element,dual ,9`` ,surface ,1200w/2500w ,radiant   (Replaces: 316418401)			Immediately	$ 138.90
F51	318044831		Light,indicator ,natural ,(4)				$ 16.69
FNI	318231876		Harness,wiring ,pilot Light				$ 31.90
FNI	318532147		Ground Wire,w/terminal		Appelez-nous	-
FNI	318228970		Harness,wiring ,cooktop				$ 112.40
NI	5303323136		Screw Ground		Appelez-nous	-
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12
NI	5304417153		Screw,shoulder ,8-18 X 1/2 ,(4)		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
