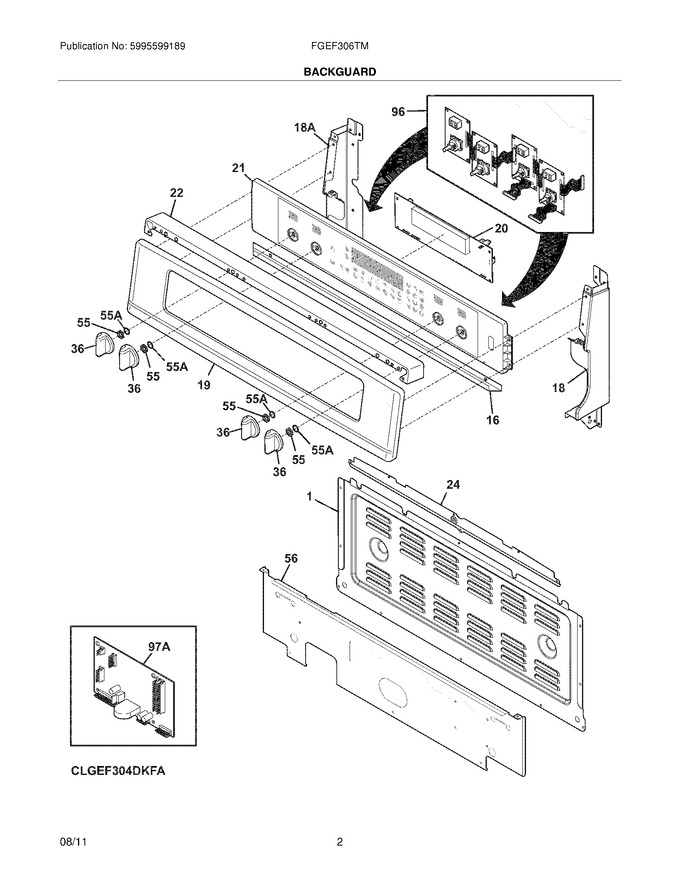

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318314111		Panel,cover ,upper		Appelez-nous	-
16	318571400		Brace,control Panel		Appelez-nous	-
18	318311932		End Cap,backsplash ,white ,rh		Appelez-nous	-
19	318573500		Panel,control ,white		Appelez-nous	-
22	318413500		Cap,top ,white ,backguard		Appelez-nous	-
24	318566201		Trim,back ,upper		Appelez-nous	-
36	316575200		Knob,control ,white		Appelez-nous	-
55	316247700		Nut,mounting				$ 18.20
56	318534931		Shield,backguard ,white ,inner		Appelez-nous	-
18A	318311933		End Cap,backsplash ,white ,lh		Appelez-nous	-
55A	316247800		Washer,lock ,mtg				$ 18.20
F20	316443865		Control,electronic ,es610w10 ,dual Oven				$ 315.44
F21	318566005		Timer Assembly,es610w5 ,white ,w/overlay		Appelez-nous	-
F96	318411411		Control Assembly,complete ,rotary ,w/4 Controls				$ 310.04
F97A	316442063		Board,power ,uib				$ 100.68
FNI	318578354		Harness,wiring ,uib ,to Relay Board				$ 53.24
FNI	318578355		Harness,wiring ,main ,backguard				$ 59.90
FNI	318578352		Harness,wiring ,controller ,to Relay Board				$ 172.15
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318573700		Bracket,control Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
