SELECT A DIAGRAM

01 - Cover


03 - Backguard

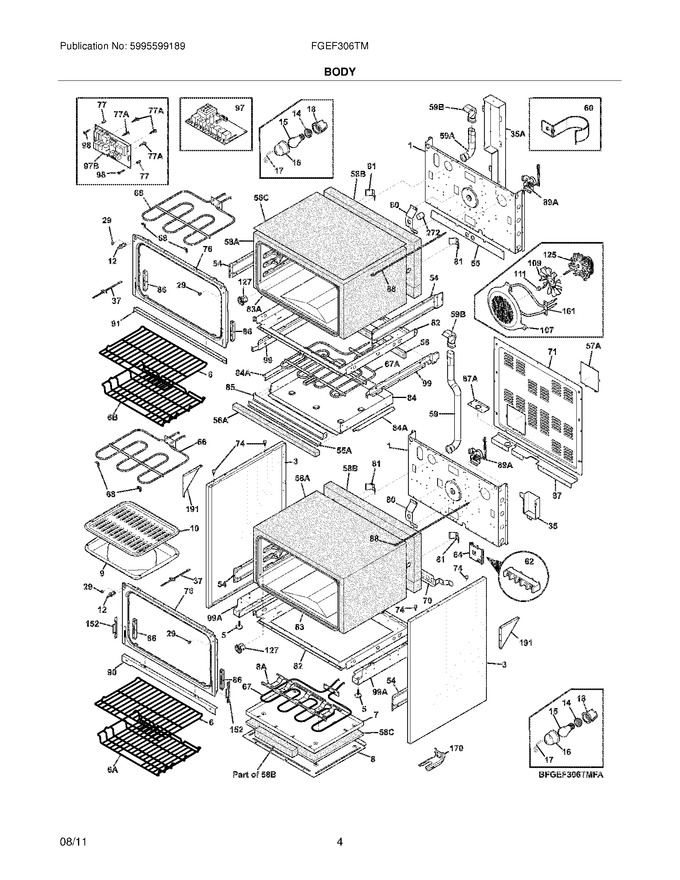

05 - Body


07 - Maintop


09 - Doors


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259272		Back,main ,lower Oven		Appelez-nous	-
3	318299866		Panel,body Side ,white ,(2)		Appelez-nous	-
5	318175510		Screw,leveling ,w/tee Nut   (Replaces: 318175508)			Immediately	$ 24.26
5	318175510		Screw,leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	318922304		Rack,oven				$ 147.53
7	318297303		Box,bake Element				$ 125.84
8	318359500		Panel,service				$ 140.09
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
12	316445501		Switch,oven Light ,door Frame				$ 90.01
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
18	318222400		Housing,oven Light				$ 58.22
29	316517600		Spacer,oven Door				$ 12.05
35	318406500		Shield,box		Appelez-nous	-
54	318535405		Bracket,side ,(4)				$ 42.32
55	318640400		Cover,insulation ,center		Appelez-nous	-
56	318642600		Insulation,rear		Appelez-nous	-
59	318641300		Tube,vent ,lower Oven		Appelez-nous	-
60	318592000		Bracket,vent Tube ,(3)		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
64	318561801		Bracket,terminal Block		Appelez-nous	-
68	5304403015		Support,hanger ,broil Element				$ 35.04
70	318565000		Bracket,bottom ,rear		Appelez-nous	-
71	318405404		Panel,rear ,lower		Appelez-nous	-
74	318141910		Bumper,bodyside ,(4)				$ 3.68
76	318056249		Front,lower Oven				$ 123.90
77	318293702		Spacer,control				$ 16.22
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258779		Shield,insulation ,lower ,large Oven		Appelez-nous	-
83	318327042		Liner,lower Oven				$ 187.49
84	318640500		Base,element ,upper Oven		Appelez-nous	-
85	318640600		Front,element Base ,upper Oven		Appelez-nous	-
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	318405500		Bracket,cable Mtg.		Appelez-nous	-
88	318250207		Rod,latch ,w/bushing				$ 62.95
90	318405203		Trim,bottom ,black   (Replaces: 318405201)				$ 56.70
91	318642500		Trim,center Vent ,black ,front		Appelez-nous	-
98	5304401490		Screw,6-18 X 1 ,(2)		Appelez-nous	-
99	318640000		Support,side ,oven ,(2)		Appelez-nous	-
107	318219405		Cover,fan				$ 82.69
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	318641200		Vent Tube,oven ,w/catalyst		Appelez-nous	-
152	318338520		Bracket,lateral Panel ,(2)				$ 18.38
170	318584500		Anti Tip Kit,assembly ,w/template		Appelez-nous	-
191	318322801		Angle,rear Plenum ,(2)		Appelez-nous	-
272	318249409		Tube,protector		Appelez-nous	-
35A	318641000		Shield,vent Tube ,cover		Appelez-nous	-
55A	318640800		Bracket,retainer ,insulation		Appelez-nous	-
56A	318642800		Insualtion,front		Appelez-nous	-
56C	318641700		Insulation,upper		Appelez-nous	-
57A	318407100		Panel,access		Appelez-nous	-
58A	318362163		Insulation,top & Sides ,lower Oven		Appelez-nous	-
58B	318641600		Insulation,back ,oven ,(2)		Appelez-nous	-
58C	318294912		Insullation,bake Element				$ 97.17
59A	318641400		Tube,vent ,upper Oven		Appelez-nous	-
59B	318641500		Cap,vent Tube ,(2)		Appelez-nous	-
6A	318919806		Rack,lower Oven				$ 189.58
6B	318919807		Rack,upper Oven				$ 145.53
77A	316114100		Spacer				$ 60.96
83A	318327044		Liner,upper Oven				$ 169.78
84A	318640700		Support,element Base ,(2)		Appelez-nous	-
87A	318111806		Plate,cord Set Mtg				$ 11.68
8A	318313601		Bracket,bake Element				$ 71.45
99A	318256210		Bracket,side ,bottom ,(2)		Appelez-nous	-
F125	318398203		Motor,fan				$ 172.63
F161	318255513		Element,convection ,350 W				$ 57.86
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F66	318255801		Element,broil ,3400w				$ 99.39
F67	318254916		Element,bake ,2500w   (Replaces: 318254915)			Immediately	$ 204.47
F67A	318641100		Element,oven Bake ,2500w				$ 143.96
F89A	318095967		Motor,latch Assy ,w/brkt & Switch				$ 238.62
F97	316442112		Board,power ,relay			Immediately	$ 328.64
F97B	316443945		Board,relay ,dual Oven				$ 351.40
FNI	318370378		Wiring Harness,door Switch ,and Latch Mtr				$ 52.24
FNI	318588901		Harness,wiring ,main		Appelez-nous	-
NI	3051050		Screw,shoulder				$ 12.29
NI	318264200		Plate,grounding Strap				$ 23.51
NI	316205500		Nut,10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	318172904		Support,wire		Appelez-nous	-
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5303323136		Screw Ground		Appelez-nous	-
NI	318235301		Connector Assy.,w/3 Lugs ,& Instructions   (Replaces: 318235300)				$ 29.06
NI	5304400192		Retainer,wiring		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw,8-18 X 13/32				$ 8.66
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5304476994		Screw,8-18 X 1/4 ,(2) ,inner Glide Mtg		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	5304436864		Washer,flat				$ 2.84
NI	5303311164		Spring				$ 18.95
NI	318167300		Clip,rod				$ 2.84
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
