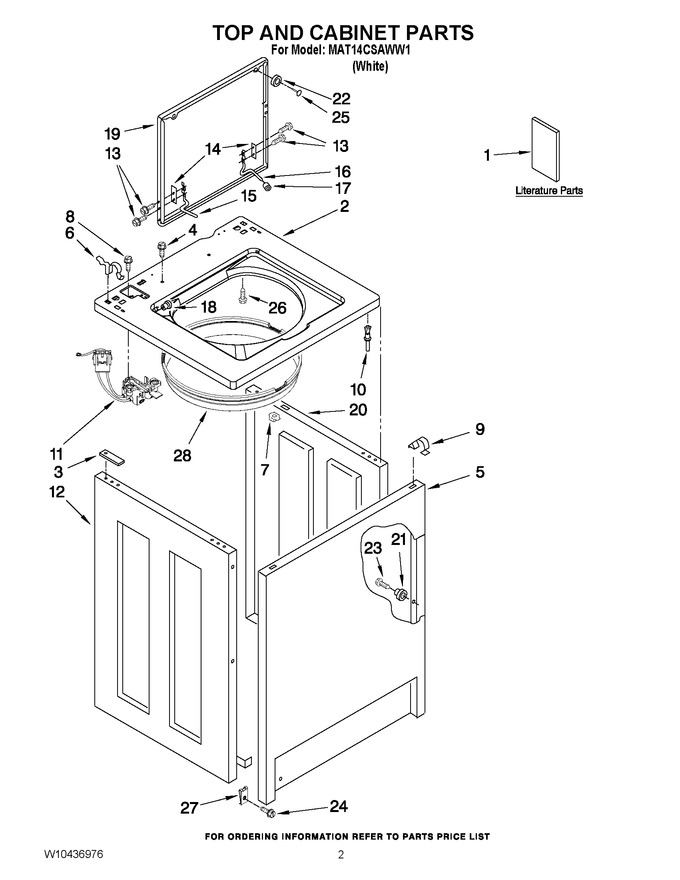

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10135312 | Installation Instructions (english) |
|
- | |||||
| 1 | W10177489 | Wiring Diagram |
|
- | |||||
| 2 | W10136711 | Top |
|
- | |||||
| 3 | 3353950 | Spacer, Cabinet To Top (4) |
|
$ 6.74 | |||||
| 4 | WP3351614 | Screw, 10-24 X 3/8 (Replaces: 3351614) |
|
Immediately | $ 6.26 | ||||
| 5 | WP3358500 | Panel, Front (Replaces: 3358500) |
|
$ 298.75 | |||||
| 6 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 7.02 | ||||
| 7 | WP90406 | Cage Nut (Replaces: 90406) |
|
$ 7.33 | |||||
| 8 | 3400611 | Screw & Washer, Lid Switch (2) |
|
- | |||||
| 9 | WP18776 | Lock (2) (Replaces: 18776) |
|
Immediately | $ 11.41 | ||||
| 10 | 3353949 | Pin, Locator (2) |
|
$ 6.23 | |||||
| 11 | WP8054980 | Switch, Lid (Replaces: 8054980) |
|
Immediately | $ 139.29 | ||||
| 12 | 3976382 | Panel L.h. |
|
$ 298.26 | |||||
| 13 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: W10119828) |
|
Immediately | $ 6.47 | ||||
| 14 | WP21097 | Pad, Lid Hinge (2) (Replaces: 21097) |
|
$ 7.02 | |||||
| 15 | WP8524784 | Hinge, Lid (l.h.) (Replaces: 8524784) |
|
$ 30.55 | |||||
| 16 | WP54583 | Hinge, Lid (r.h.) (Replaces: 54583) |
|
$ 26.60 | |||||
| 17 | 19119 | Bumper, Lid Hinge |
|
$ 5.75 | |||||
| 18 | WP21258 | Bearing, Lid Hinge (2) (Replaces: 21258) |
|
Immediately | $ 6.87 | ||||
| 19 | W10171146 | Lid |
|
- | |||||
| 20 | 3976380 | Panel R.h. |
|
$ 197.22 | |||||
| 21 | 3353812 | Locator (4) |
|
$ 5.51 | |||||
| 22 | 356908 | Bumper, Lid |
|
$ 8.35 | |||||
| 23 | WP9741232 | Screw (4) (Replaces: 718258) |
|
Immediately | $ 4.56 | ||||
| 24 | WP3400077 | Screw, 10-16 X 1/2 (Replaces: 3400077) |
|
$ 6.25 | |||||
| 25 | WP356907 | Rivet, Plastic (Replaces: 356907) |
|
$ 6.66 | |||||
| 26 | 3353993 | Screw 10-16 X .690 |
|
$ 5.86 | |||||
| 27 | WPW10131123 | Clip, U-bend (2) (Replaces: W10004930) |
|
$ 6.94 | |||||
| 28 | 8271956 | Shield Assembly |
|
$ 61.36 |
