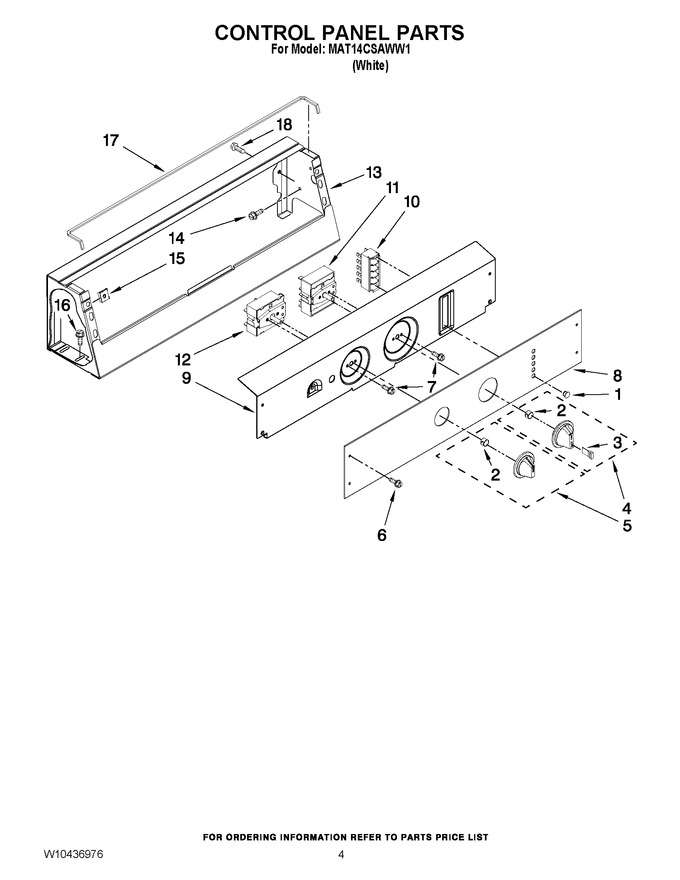

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10133502 | Lens, Amber Indicator (Replaces: W10133502) |
|
$ 11.58 | |||||
| 2 | W10140928 | Clip, Knob |
|
$ 5.22 | |||||
| 3 | W10141516 | Bumper, Lid |
|
- | |||||
| 4 | W10133503 | Knob & Bumper Assembly |
|
$ 34.66 | |||||
| 5 | W11103226 | Knob (Replaces: W10133504) |
|
$ 61.07 | |||||
| 6 | WPW10131119 | Screw, 8-18 X 1/2 (Replaces: W10131119) |
|
$ 6.26 | |||||
| 7 | W10139100 | Screw, 8-32 X 1/4 |
|
$ 11.15 | |||||
| 8 | W10135336 | Facia / Overlay |
|
$ 43.14 | |||||
| 9 | W10124209 | Bracket, Control |
|
- | |||||
| 10 | W10135690 | Indicator, Five Light |
|
- | |||||
| 11 | WPW10330139 | Switch, Cycle Selector (Replaces: W10135589) |
|
$ 185.11 | |||||
| 12 | W10330138 | Switch, 2 Way Load Size |
|
$ 200.67 | |||||
| 13 | W10231471 | Console (Replaces: W10205153) |
|
- | |||||
| 14 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: W10139210) |
|
$ 6.75 | |||||
| 15 | WPW10131123 | Nut, No.8 U Type (Replaces: W10131123) |
|
$ 6.94 | |||||
| 16 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 7.04 | |||||
| 17 | WPW10157932 | Foam Seal (Replaces: W10157932) |
|
Immediately | $ 7.25 | ||||
| 18 | WP488488 | Screw, 8-18 X 1/2 (Replaces: 489290) |
|
$ 6.91 |
