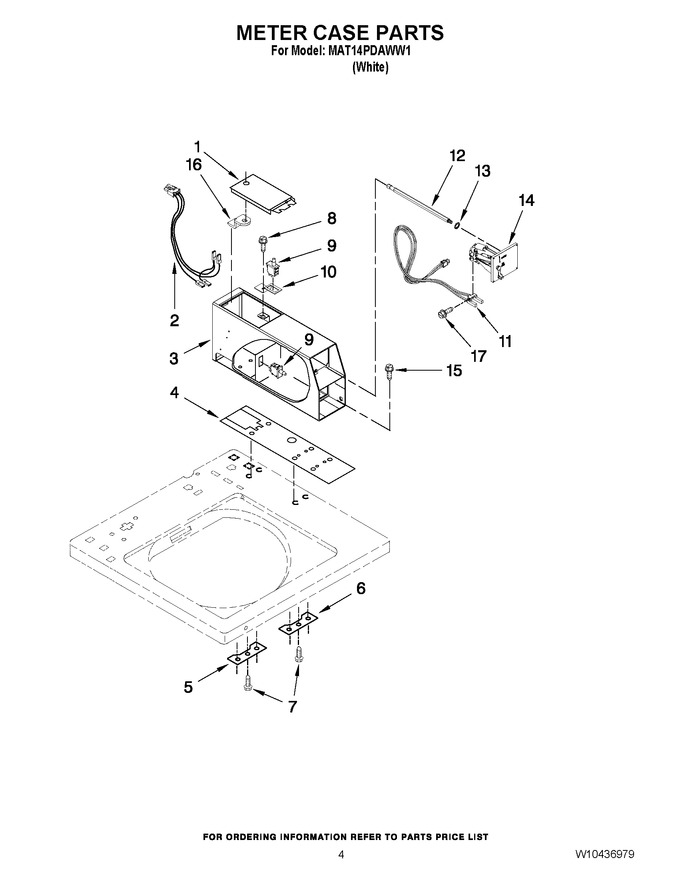

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11283272		Door, Service   (Replaces: 3351136)				$ 95.29
2	W11096090		Harness, Wire Sensor Switch   (Replaces: W10211244)				$ 11.48
3	WPW10529176		Meter Case   (Replaces: W10136645)				$ 273.48
4	WP3954812		Cushion, Case   (Replaces: 3954812)				$ 27.99
5	3353813		Plate, Mounting				$ 47.08
6	3347825		Plate, Mounting		Appelez-nous	-
7	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
8	WPW10139210		Screw, 8-18 X 5/16   (Replaces: W10139210)				$ 6.75
9	WPW10131838		Switch - Vault & Service Door   (Replaces: W10131838)				$ 21.52
10	W11204533		Bracket, Service   (Replaces: W10133508)		Appelez-nous	-
11	WPW10247389		Coin-optic Sensor Assembly   (Replaces: W10247389)			Immediately	$ 104.31
12	WPW10137319		Hex Bar Bolt   (Replaces: W10137319)				$ 73.17
13	W11170663		Washer   (Replaces: W10068270)				$ 3.89
14	WPW10133242		Coin Drop Assy.   (Replaces: W10133242)				$ 126.51
15	3353994		Bolt, Meter Case Mounting (5/16-18 X 2 1/2)		Appelez-nous	-
15	W11715721		Bolt, Meter Case Mounting (5/16-24 X 1.00 (3))   (Replaces: 3349065)				$ 6.41
16	W11401086		Cam Commercial Lock   (Replaces: W10145154)				$ 6.17
17	WP3395530		Screw, 6-20 X 1.00   (Replaces: W10142655)				$ 6.93
