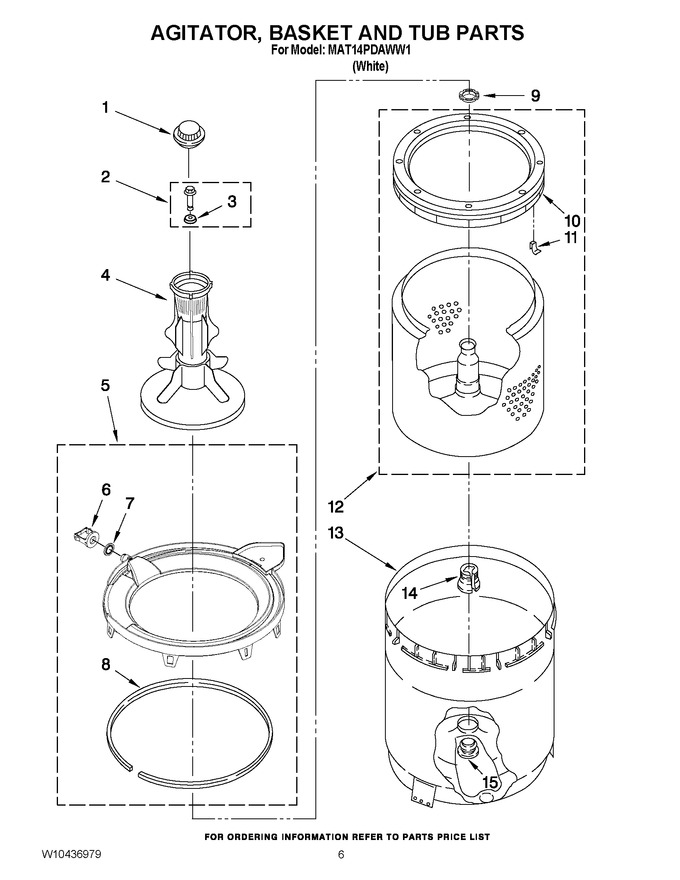

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10131111 | Cap, Agitator (Replaces: W10131111) |
|
Immediately | $ 7.64 | ||||
| 2 | W10772621 | Screw & Washer Assembly (Replaces: W10003790) |
|
Immediately | $ 4.72 | ||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 9.98 | ||||
| 4 | WPW10131112 | Agitator (Replaces: W10131112) |
|
Immediately | $ 111.72 | ||||
| 5 | W10114776 | Tub Ring |
|
$ 90.67 | |||||
| 6 | 8055316 | Retainer, Check Valve |
|
- | |||||
| 7 | 3369375 | Wafer, Check Valve |
|
- | |||||
| 8 | WP3359586 | Gasket, Tub Ring (Replaces: 3359586) |
|
$ 81.11 | |||||
| 9 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.00 | ||||
| 10 | 3956205 | Balance Ring (includes Item 11) |
|
$ 75.59 | |||||
| 11 | WP8519815 | Clip, Balance Ring (8) (Replaces: 8519815) |
|
$ 7.51 | |||||
| 12 | 8545860 | Basket & Balance Ring |
|
- | |||||
| 13 | W10135424 | Tub |
|
- | |||||
| 14 | WP389140 | Block, Drive (Replaces: 389140) |
|
Immediately | $ 24.74 | ||||
| 15 | W10814296 | Gasket, Centerpost (Replaces: 383727) |
|
Immediately | $ 8.26 |
