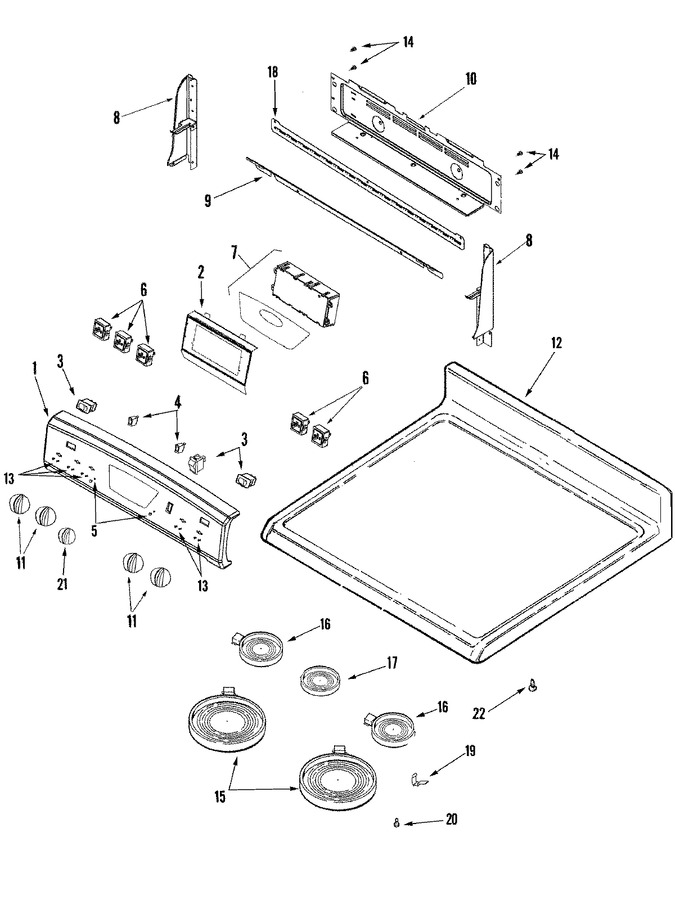

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74011343 | Panel, Backguard (slv) (elec) | 10 |
|
- | ||||
| 2 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 2 | 74008716 | Bracket, Clock | 10 |
|
- | ||||
| 3 | 74008718 | Switch, Rocker (blk) | 10 |
|
$ 50.46 | ||||
| 4 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 5 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 6 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 6 | 74011070 | Switch, Infinite | 10 |
|
$ 109.95 | ||||
| 6 | 74006589 | Switch, Infinite (warming) | 10 |
|
- | ||||
| 7 | 5701M760-60 | Clock W/overlay (blk) (Replaces: 74010295) | 10 |
|
$ 379.39 | ||||
| 7 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 8 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 8 | WP98008545 | Screw (blk) (Replaces: 74009537) | 10 |
|
$ 15.94 | ||||
| 8 | 74010201 | Support, Backguard (rt-blk) | 10 |
|
- | ||||
| 8 | 74010202 | Support, Backguard (lt-blk) | 10 |
|
- | ||||
| 9 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 9 | 74009978 | Shield, Wire | 10 |
|
- | ||||
| 10 | 74010983 | Cover, Rear Wire | 10 |
|
- | ||||
| 10 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 11 | 74008731 | Knob (blk) | 10 |
|
$ 67.30 | ||||
| 12 | 74011404 | Top, Main (blk) | 10 |
|
- | ||||
| 13 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 14 | WP7101P498-60 | Screw (6abx.25-zn) (Replaces: 74003357) | 10 |
|
$ 6.74 | ||||
| 15 | 74009898 | Element, Dual (2400w) | 10 |
|
$ 157.27 | ||||
| 16 | W10823711 | Element (1200w) (Replaces: 74008568) | 10 |
|
Immediately | $ 183.95 | |||
| 17 | WP8523700 | Element, Warming (Replaces: 74008571) | 10 |
|
Immediately | $ 159.08 | |||
| 18 | 74009701 | Shield, Rear Sight | 10 |
|
- | ||||
| 19 | 74003072 | Support, Ceramic Element | 10 |
|
- | ||||
| 20 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 10 |
|
$ 12.69 | ||||
| 20 | WP7101P434-60 | Screw (Replaces: 71001394) | 10 |
|
$ 6.26 | ||||
| 21 | 74008892 | Knob (blk) | 10 |
|
$ 6.79 | ||||
| 22 | W11189172 | Glide, Main Top (Replaces: 74004558) | 10 |
|
Immediately | $ 15.09 |
