SELECT A DIAGRAM

01 - Body


02 - Control Panel/top Assembly


03 - Door/drawer (stl)


04 - Oven/base


05 - Supplemental Information


06 - Wiring Information

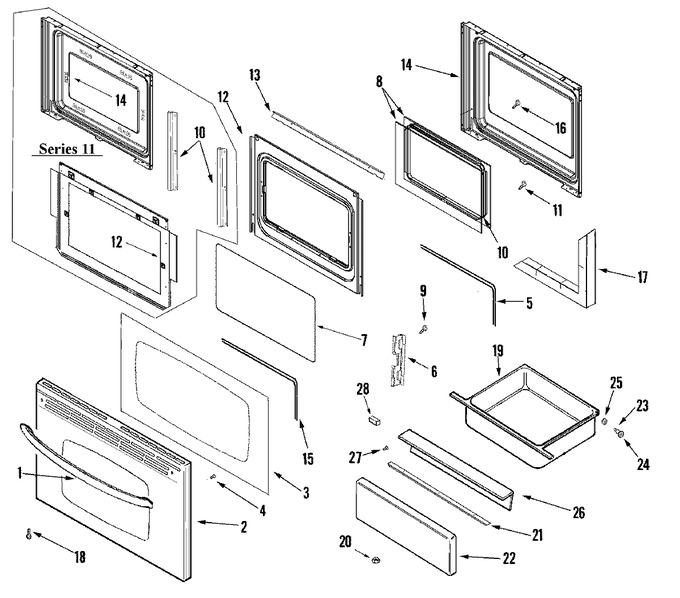

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74010924		Handle, Door	10	Appelez-nous	-
2	74010233		Insulation, Foil	10	Appelez-nous	-
2	74011227		Panel, Door (stl)	10	Appelez-nous	-
3	74010042		Glass, Oven Door (stl)	10			$ 75.26
4	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
4	WP74006515		Screw W/washer (handle Mtg)   (Replaces: 74006635)	10			$ 7.29
5	WP74009029		Gasket, Door Window   (Replaces: 74009029)	10		Immediately	$ 145.22
6	74010041		Retainer, Door Glass	10	Appelez-nous	-
7	74010231		Glass, Door (inner/coated)	10	Appelez-nous	-
8	74003645		Glass, Inner	10		Immediately	$ 162.53
9	W11233072		Screw, (no.8x1/2``pph)   (Replaces: 74009268)	10		Immediately	$ 12.62
10	74003644		Frame, Glass	10	Appelez-nous	-
10	W11233072		Screw, 8 X 1/2   (Replaces: 74002979)	11		Immediately	$ 12.62
10	74011458		Bracket, Inner Glass	11	Appelez-nous	-
11	W11233072		Screw, (no.8x1/2``pph)   (Replaces: 74009268)	10		Immediately	$ 12.62
12	W11233072		Screw, (no.8x1/2``pph)   (Replaces: 74009268)	10		Immediately	$ 12.62
12	74011339		Baffle, Oven Door	10	Appelez-nous	-
12	3601F373-51		Baffle, Oven Door   (Replaces: 74011457)	11			$ 244.22
13	74010040		Shield, Door (stl)	10	Appelez-nous	-
14	74003642		Lining, Door	10	Appelez-nous	-
14	74011456		Lining, Door	11	Appelez-nous	-
15	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
16	W11233072		Screw, (no.8x1/2``pph)   (Replaces: 74009268)	10		Immediately	$ 12.62
17	74003647		Insulation, Oven Door	10	Appelez-nous	-
18	WP7101P072-60		Screw, Panel   (Replaces: 74004310)	10			$ 6.77
19	74008337		Drawer, Storage	10			$ 171.37
20	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
21	74009841		Handle, Drawer (stl)	10	Appelez-nous	-
22	74009842		Panel, Drawer Elect (stl)	10	Appelez-nous	-
23	74005231		Shaft, Storage Drawer Roller	10			$ 9.23
24	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
25	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
26	2404F030-51		Lining, Drawer Panel	10	Appelez-nous	-
27	W11233072		Screw, (no.8x1/2``pph)   (Replaces: 74009268)	10		Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
