SELECT A DIAGRAM

01 - Backguard


02 - Main Top


03 - Burner


04 - Body


05 - Oven Door


06 - Rotisserie , Griddle

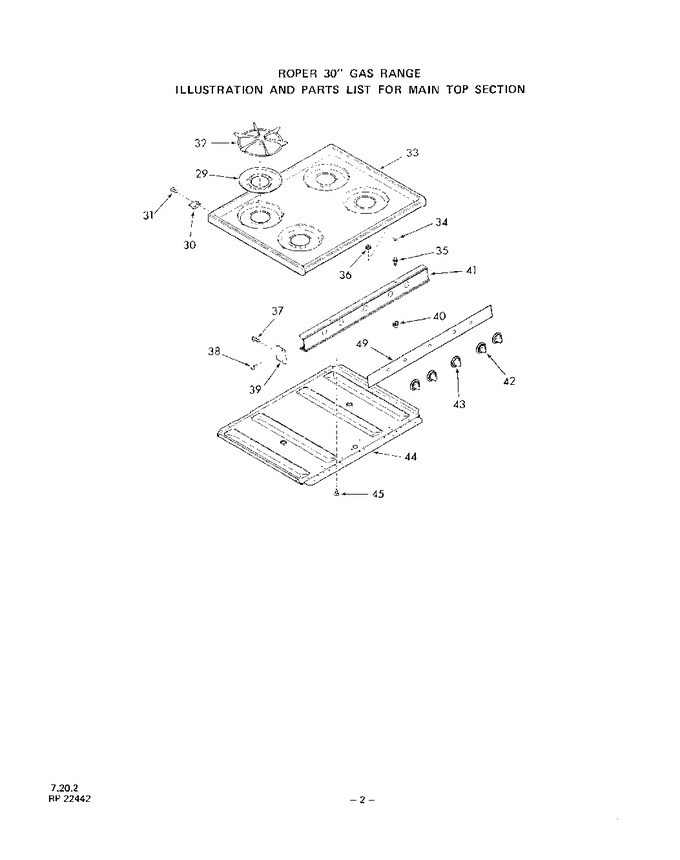

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
29	322888		Spill Bowl (4 Required)		Appelez-nous	-
30	301672		Retainer-main Top (lt. Or Rt.)		Appelez-nous	-
31	321337		Screw 10-32x7/16``		Appelez-nous	-
32	316786		Top Grate (4 Required)		Appelez-nous	-
33	322876		Main Top (chrome)		Appelez-nous	-
33	316813		Main Top (white)		Appelez-nous	-
33	316815		Main Top (golden Wheat)		Appelez-nous	-
33	316814		Main Top (almond)		Appelez-nous	-
34	99279		Washer		Appelez-nous	-
35	299784		Strike (rt. Or Lt.)		Appelez-nous	-
36	239764		Keps Nut		Appelez-nous	-
37	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 174.11
38	295268		Screw 6-32x3/8``		Appelez-nous	-
39	318258		End Cap-manifold Panel (left)		Appelez-nous	-
39	318259		End Cap-manifold Panel (right)		Appelez-nous	-
40	24667		Catch - Main Top Strike		Appelez-nous	-
41	322807		Manifold Panel		Appelez-nous	-
42	320904		Knob-gas Valve (4 Required)		Appelez-nous	-
43	322170		Knob-oven Thermostat		Appelez-nous	-
44	320408		Burner Box Bottom		Appelez-nous	-
45	239113		Screw 10-32x3/8``		Appelez-nous	-
49	322873		Trim-manifold Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
