01 - Backguard
02 - Main Top

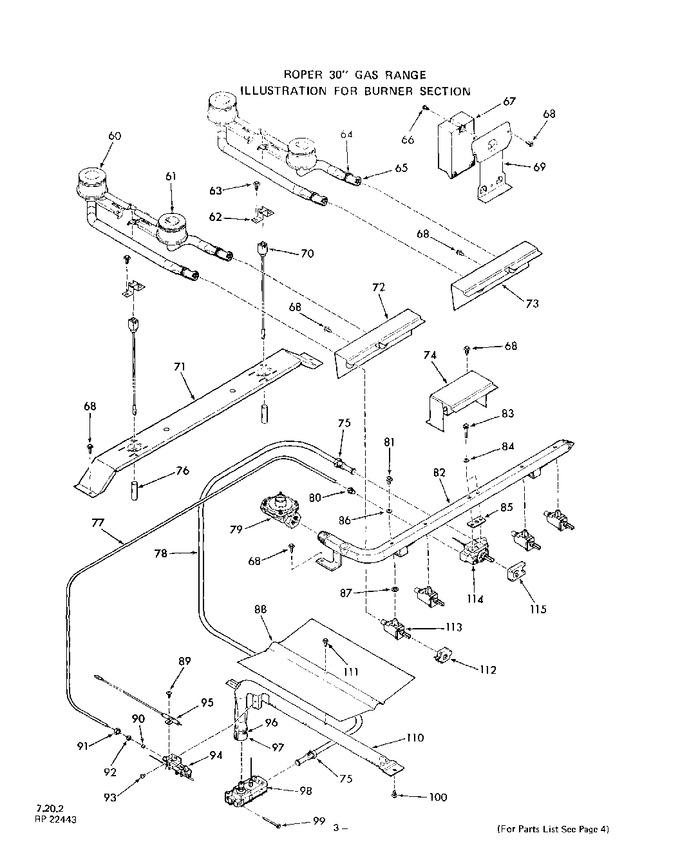

03 - Burner
04 - Body
05 - Oven Door
06 - Rotisserie , Griddle
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 60 | 310197 | Rear Top Burner-lt. Or Rt. (inc`s 64 & 65) |
|
- | |||||
| 61 | 310196 | Front Top Burner-lt. Or Rt. (inc`s 64 & 65) |
|
- | |||||
| 62 | 312453 | Bracket-spark Igniter (lt. Or Rt.) |
|
- | |||||
| 63 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 64 | 301911 | Adjustment Screw-air Shutter |
|
- | |||||
| 65 | 301910 | Air Shutter |
|
- | |||||
| 66 | 299766 | Screw 6-32 X 1/2`` |
|
- | |||||
| 67 | 318430 | Module-spark Igniter |
|
- | |||||
| 68 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 69 | 318439 | Support-spark Igniter |
|
- | |||||
| 70 | 312598 | Electrode Spark Igniter (right) |
|
- | |||||
| 70 | 312455 | Electrode-spark Igniter (left) |
|
- | |||||
| 71 | 313375 | Support-top Burner |
|
- | |||||
| 72 | 321172 | Valve Cover-left |
|
- | |||||
| 73 | 321170 | Valve Cover-right |
|
- | |||||
| 74 | 318460 | Wire Cover-oven Thermostat |
|
- | |||||
| 75 | 113384 | Inverted Nut 3/8`` |
|
- | |||||
| 76 | 314132 | Sleeve-igniter Wire (lt. Or Rt.) |
|
- | |||||
| 77 | 322446 | Tubing 3/16`` |
|
- | |||||
| 78 | 295037 | Tubing 3/8`` |
|
- | |||||
| 79 | 293809 | Pressure Regulator |
|
- | |||||
| 80 | 79673 | Loxit Nut 3/16`` |
|
- | |||||
| 81 | 311455 | Mounting Screw (inc`s 86) |
|
- | |||||
| 82 | 318481 | Manifold Pipe |
|
- | |||||
| 83 | 318478 | Mounting Screw (2 Req. For 114) |
|
- | |||||
| 84 | 318658 | Gasket (for 83) |
|
- | |||||
| 85 | 318657 | Silicone Rubber Gasket |
|
- | |||||
| 86 | 304241 | Gasket (for 81) |
|
- | |||||
| 87 | 313563 | Silicone Rubber Gasket |
|
- | |||||
| 88 | 302729 | Baffle - Oven Burner |
|
- | |||||
| 89 | 300000 | Screw 6-32 X 5/16`` |
|
- | |||||
| 90 | 318485 | Orifice Cup Only (for 94) |
|
- | |||||
| 91 | 65712 | Compression Nut 3/16`` |
|
- | |||||
| 92 | 65711 | Compression Ball Sleeve 3/16`` |
|
$ 6.30 | |||||
| 93 | 288248 | Screw 10-24x1/4`` |
|
- | |||||
| 94 | 318486 | Pilot Only (inc`s 90) |
|
- | |||||
| 95 | 318431 | Electrode - Oven Spark Igniter |
|
- | |||||
| 96 | 312989 | Adjustment Screw -air Shutter |
|
- | |||||
| 97 | 312988 | Air Shutter |
|
- | |||||
| 98 | 318482 | Control Valve (inc`s 90 & 94) |
|
- | |||||
| 99 | 112365 | Screw 10-32x2`` |
|
- | |||||
| 100 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 110 | 319255 | Oven Burner (inc`s 88, 96 & 97) |
|
- | |||||
| 111 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 112 | 312457 | Switch-valve (1 Ea. Req. For 113) |
|
- | |||||
| 113 | 318479 | Gas Valve (4 Required-inc`s. Keys 81, 86, 87) |
|
- | |||||
| 114 | 318477 | Oven Thermostat (inc`s. Key 85) |
|
- | |||||
| 115 | 318432 | Switch-oven Thermostat |
|
- |
