01 - Cover

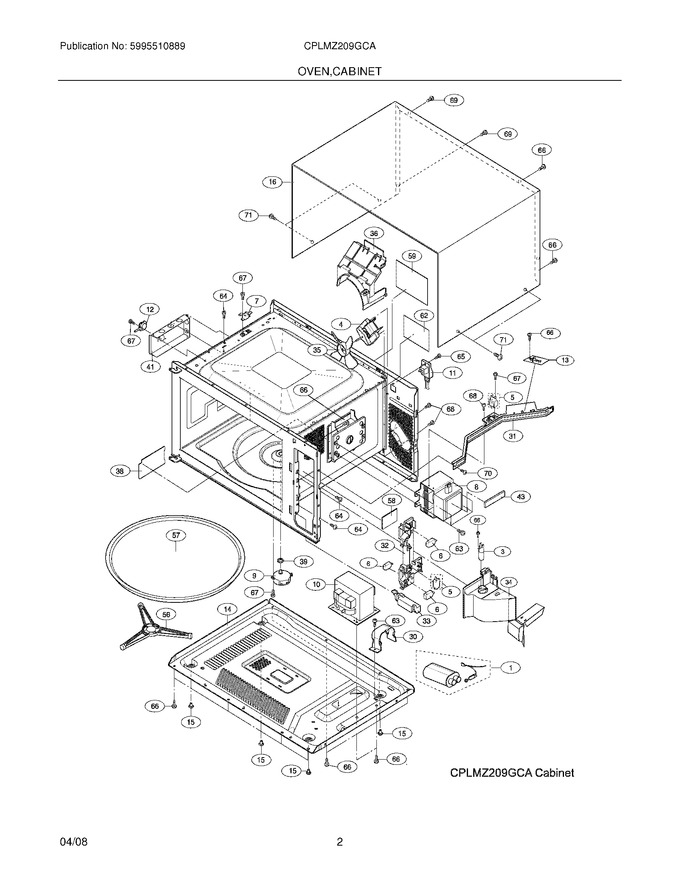

03 - Oven Cabinet
05 - Control Panel Door Misc.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | 5304440814 | Base,unit Chassis |
|
$ 105.26 | |||||
| 15 | 5304440815 | Foot,cabinet Support |
|
- | |||||
| 16 | 5304440816 | Cabinet,outer Casing ,black |
|
$ 205.20 | |||||
| 30 | 5304440838 | Retainer,capacitor Strap |
|
$ 8.77 | |||||
| 31 | 5304462313 | Bracket,chassis Support |
|
- | |||||
| 32 | 5304503439 | Latch Hook (Replaces: 5304440840) |
|
Immediately | $ 60.62 | ||||
| 33 | 5304485407 | Lever,door Release (Replaces: 5304440841) |
|
$ 63.36 | |||||
| 34 | 5304440842 | Duct,magnetron |
|
- | |||||
| 36 | 5304440844 | Duct,cooling Fan |
|
- | |||||
| 38 | 5304462314 | Cover,waveguide |
|
$ 60.17 | |||||
| 39 | 5304440288 | Bushing,motor Shaft ,turntable |
|
$ 16.45 | |||||
| 41 | 5304440847 | Duct,ah Sensor |
|
- | |||||
| 43 | 5304441910 | Cushion,magnetron Pad |
|
- | |||||
| 56 | 5304467717 | Support Assy,turntable (Replaces: 5304440284) |
|
$ 122.18 | |||||
| 57 | 5304529482 | Tray,turntable ,glass (Replaces: 5304440868) |
|
$ 108.44 | |||||
| 58 | 5304440334 | Label,caution-monitor |
|
- | |||||
| 59 | 5304440333 | Label,caution-dhhs |
|
- | |||||
| 62 | 5304451533 | Label,nhw Caution |
|
- | |||||
| 63 | 5303319636 | Screw |
|
- | |||||
| 64 | 5303319641 | Screw |
|
$ 12.76 | |||||
| 65 | 5304462315 | Screw,4 Mm X 12 Mm ,ground |
|
- | |||||
| 66 | 5304451553 | Screw,4 Mm X 12 Mm |
|
$ 14.89 | |||||
| 67 | 5304453725 | Screw,3mm X 8mm |
|
- | |||||
| 68 | 5304450253 | Screw,4 Mm X 8 Mm |
|
$ 14.89 | |||||
| 69 | 5304440873 | Screw,torx ,t20h/gtxh20-100 |
|
$ 11.34 | |||||
| 70 | 5304462316 | Screw |
|
- | |||||
| 71 | 5304452261 | Screw,black ,outer Casing |
|
- | |||||
| F1 | 5304487566 | Capacitor/rectifier Assy,hv (Replaces: 5304462258) |
|
Immediately | $ 122.62 | ||||
| F10 | 5304473321 | Transformer,power (Replaces: 5304440876) |
|
$ 253.64 | |||||
| F11 | 5304440784 | Power Cord,electric |
|
$ 120.49 | |||||
| F12 | 5304440785 | Sensor,humidity ,cook Control |
|
$ 56.18 | |||||
| F13 | 5304493151 | Filter,noise ,electronic (Replaces: 5303322968) |
|
$ 54.76 | |||||
| F3 | 5304500304 | Lamp Assy,with Socket (Replaces: 5304440779) |
|
$ 63.79 | |||||
| F35 | 5304440843 | Fan Blade,cooling Fan |
|
$ 37.75 | |||||
| F4 | 5304493152 | Motor,cooling Fan (Replaces: 5304448490) |
|
$ 87.43 | |||||
| F5 | 5304468224 | Switch Kit,monitor ,with Ct Fuse (Replaces: 5304440027) |
|
Immediately | $ 83.14 | ||||
| F6 | 5304493153 | Switch,interlock ,door Sensor (Replaces: 5304440026) |
|
Immediately | $ 83.38 | ||||
| F7 | 5304440780 | Fuse,cavity Temp ,20 Amp ,250 V |
|
$ 85.76 | |||||
| F8 | 5304448837 | Magnetron |
|
$ 336.88 | |||||
| F9 | 5304448832 | Motor,turntable |
|
Immediately | $ 74.09 |
