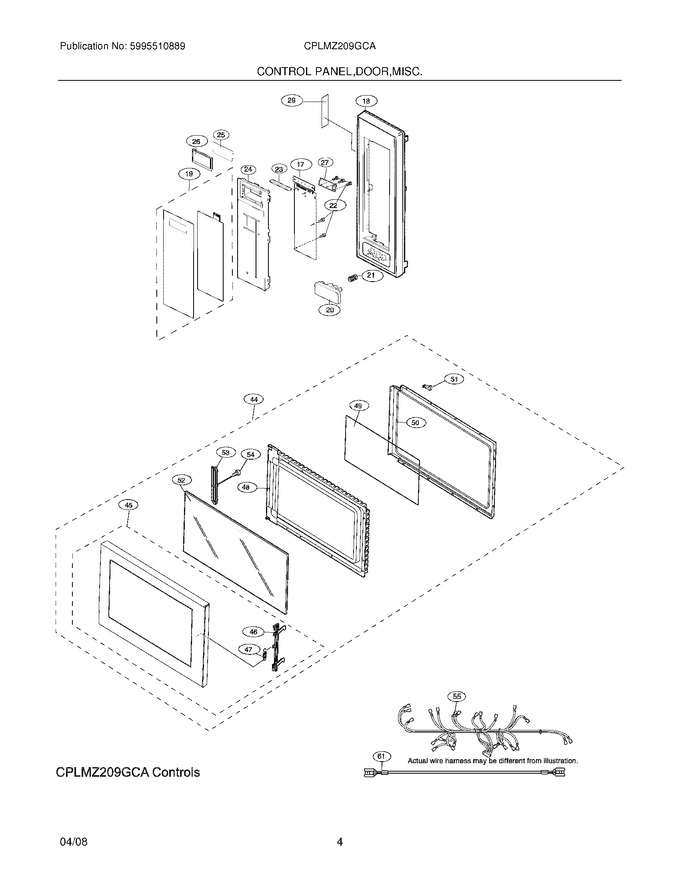

05 - Control Panel Door Misc.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	5304462914		Frame,control Panel ,stainless ,w/nameplate				$ 165.74
20	5304462915		Push Button,door ,stainless				$ 99.77
21	5304440831		Spring,door Button				$ 20.29
22	5304456930		Screw,3 Mm X 10 Mm		Appelez-nous	-
23	5304440832		Connector,rubber ,control Board				$ 41.63
24	5304440833		Panel,touch Control				$ 83.93
27	5304440836		Bracket,pcb Support				$ 44.47
29	5304440346		Label,user Caution				$ 34.73
44	5304464298		Door Assy,complete ,stainless				$ 249.38
45	5304464299		Panel,outer Door ,w/nameplate		Appelez-nous	-
46	5304441893		Latch,door   (Replaces: 5304440856)			Immediately	$ 48.91
47	5304440316		Spring,door Latch			Immediately	$ 61.00
48	5304440857		Panel,inner Door ,black				$ 192.29
49	5304440860		Seal,door ,film				$ 63.09
50	5304440861		Choke Cover,inner Door				$ 73.02
51	5304442145		Door Stop		Appelez-nous	-
52	5304440863		Panel,glass ,black ,door Front		Appelez-nous	-
53	5304440862		Door Stop		Appelez-nous	-
54	5304452259		Screw		Appelez-nous	-
F17	5304440877		Control Board,printed Circuit				$ 350.39
F19	5304440824		Touch Control Assy,black		Appelez-nous	-
F25	5304493204		Led Sheet,backlight   (Replaces: 5304440834)				$ 26.94
F26	5304440835		Lcd,display				$ 73.38
F55	5304440878		Wiring Harness,main				$ 156.45
F61	5304440870		Wire,high Voltage-a		Appelez-nous	-
NI	240558802		Nameplate,door Badge ,stainless				$ 3.03
