SELECT A DIAGRAM

01 - Cover

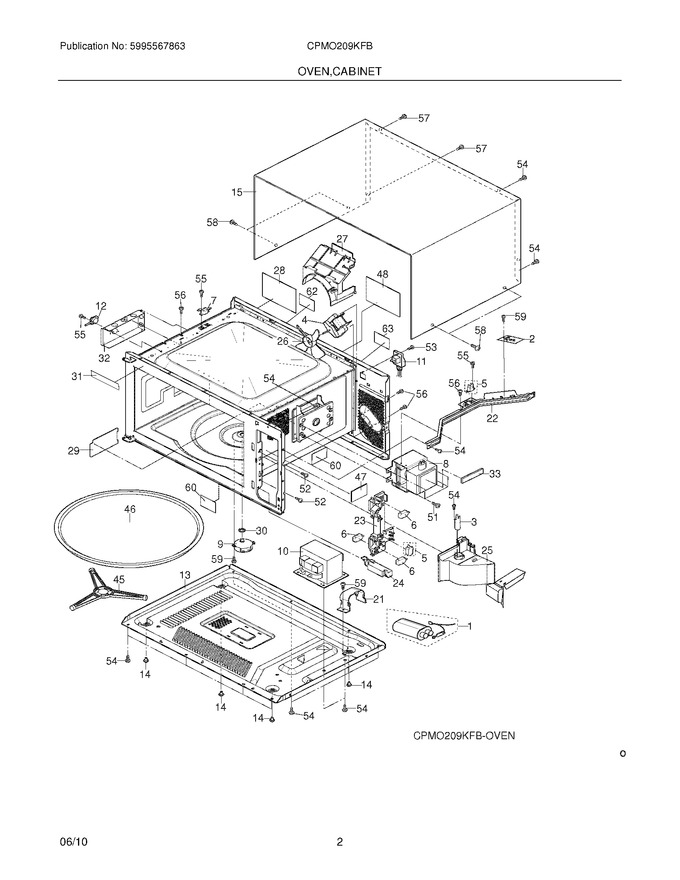

03 - Oven,cabinet


05 - Control Panel,door Miscellaneous


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	5304478938		Base,unit Chassis				$ 147.47
14	5304478939		Foot,cabinet Support				$ 19.06
15	5304478940		Cabinet,outer Casing ,black				$ 320.30
21	5304478941		Retainer,capacitor Strap		Appelez-nous	-
22	5304478942		Bracket,chassis Support		Appelez-nous	-
23	5304503439		Latch Hook   (Replaces: 5304478943)			Immediately	$ 60.62
24	5304485407		Lever,door Release   (Replaces: 5304478944)				$ 63.36
25	5304478956		Duct,magnetron		Appelez-nous	-
27	5304478945		Duct,cooling Fan		Appelez-nous	-
28	5304468230		Label,hwc Caution		Appelez-nous	-
29	5304478947		Cover,waveguide		Appelez-nous	-
30	5304467718		Bushing,motor Shaft ,turntable				$ 19.14
31	5304472847		Label,menu		Appelez-nous	-
32	5304478948		Duct,humidity Sensor		Appelez-nous	-
33	5304478949		Cushion,magnetron Pad		Appelez-nous	-
45	5304478951		Support Assy,turntable ,roller		Appelez-nous	-
46	5304529482		Tray,turntable ,glass   (Replaces: 5304440868)				$ 108.44
47	5304467771		Label,caution-monitor		Appelez-nous	-
48	5304467770		Label,caution-dhhs		Appelez-nous	-
51	5304467780		Screw,4 Mm X 8 Mm ,tap Tight				$ 13.46
52	5303319641		Screw				$ 12.76
53	5304462315		Screw,4 Mm X 12 Mm ,ground		Appelez-nous	-
54	5304502863		Screw,4 Mm X 8 Mm ,silver   (Replaces: 5304451552)				$ 10.85
55	5304467781		Screw,3 Mm X 6 Mm				$ 9.87
56	5304450253		Screw,4 Mm X 8 Mm				$ 14.89
57	5304440873		Screw,torx ,tamper Proof				$ 11.34
58	5304467777		Screw,4 Mm X 8 Mm ,black				$ 16.30
59	5304451550		Screw,4 Mm X 8 Mm		Appelez-nous	-
60	5304468226		Label,caution-dhhs				$ 3.15
62	5304453941		Label,caution ,ul Screw		Appelez-nous	-
63	5304478953		Label,height Caution		Appelez-nous	-
F1	5304478954		Capacitor/rectifier Kit,hv				$ 155.78
F10	5304473321		Transformer,power				$ 253.64
F11	5304478937		Power Cord,electric				$ 68.75
F12	5304440785		Sensor,humidity ,cook Control				$ 56.18
F2	5304493151		Filter,noise ,electronic   (Replaces: 5303322968)				$ 54.76
F26	5304467720		Fan Blade,mag Cooling Fan				$ 17.64
F3	5304500304		Lamp Assembly,with Socket   (Replaces: 5304478955)				$ 63.79
F4	5304493152		Motor,cooling Fan   (Replaces: 5304448490)				$ 87.43
F5	5304468224		Switch,monitor ,w/ceramic Fuse			Immediately	$ 83.14
F6	5304493153		Switch,interlock ,door Sensor   (Replaces: 5304440026)			Immediately	$ 83.38
F7	5304440780		Fuse,cavity Temp ,20 Amp ,250 V				$ 85.76
F8	5304521745		Magnetron   (Replaces: 5304472253)				$ 189.05
F9	5304448832		Motor,turntable   (Replaces: 5304440782)			Immediately	$ 74.09

    View Diagram in Separate Window       Print Part List
