SELECT A DIAGRAM

01 - Cover


03 - Oven,cabinet

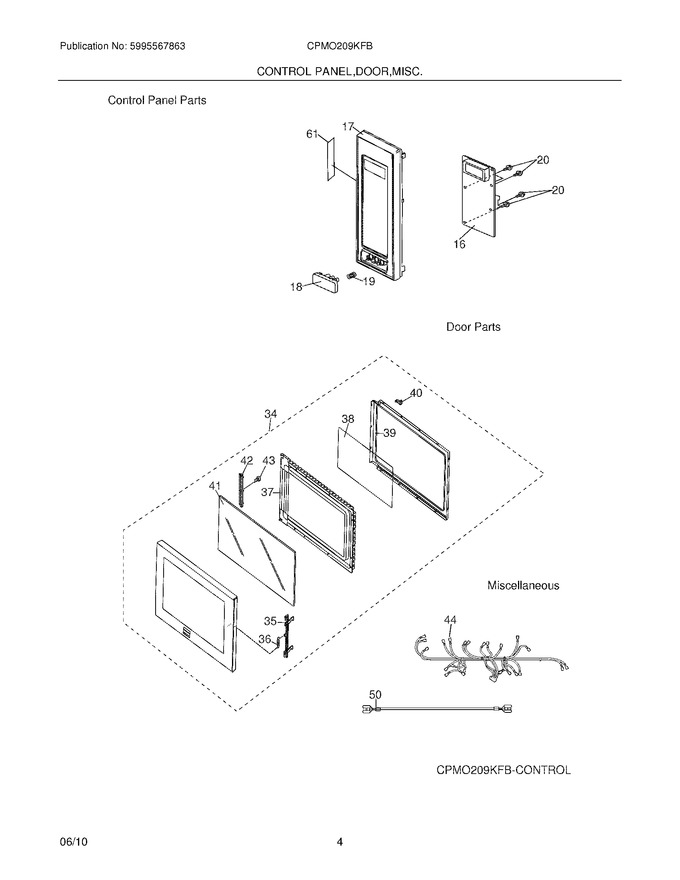

05 - Control Panel,door Miscellaneous


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	5304497439		Push Button,door ,stainless   (Replaces: 5304472845)				$ 262.49
19	5304440831		Spring,door Button				$ 20.29
20	5304456930		Screw,3 Mm X 10 Mm		Appelez-nous	-
34	5304472848		Door Assy,complete ,stainless				$ 273.37
35	5304441893		Latch,door			Immediately	$ 48.91
36	5304440316		Spring,door Latch			Immediately	$ 61.00
37	5304472852		Panel,inner Door ,light Gray		Appelez-nous	-
38	5304440860		Seal,door ,film				$ 63.09
39	5304440861		Choke Cover,inner Door				$ 73.02
40	5304442145		Door Stop		Appelez-nous	-
41	5304472853		Panel,door Glass ,silver		Appelez-nous	-
42	5304440862		Door Stop		Appelez-nous	-
43	5304452259		Screw		Appelez-nous	-
61	5304468232		Label,user Caution		Appelez-nous	-
F16	5304472840		Control Board,printed Circuit				$ 418.58
F17	5304497439		Control Panel Assy,stainless   (Replaces: 5304472841)				$ 262.49
F44	5304478957		Wiring Harness,main				$ 108.68
F50	5304440870		Wire,high Voltage-a		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
