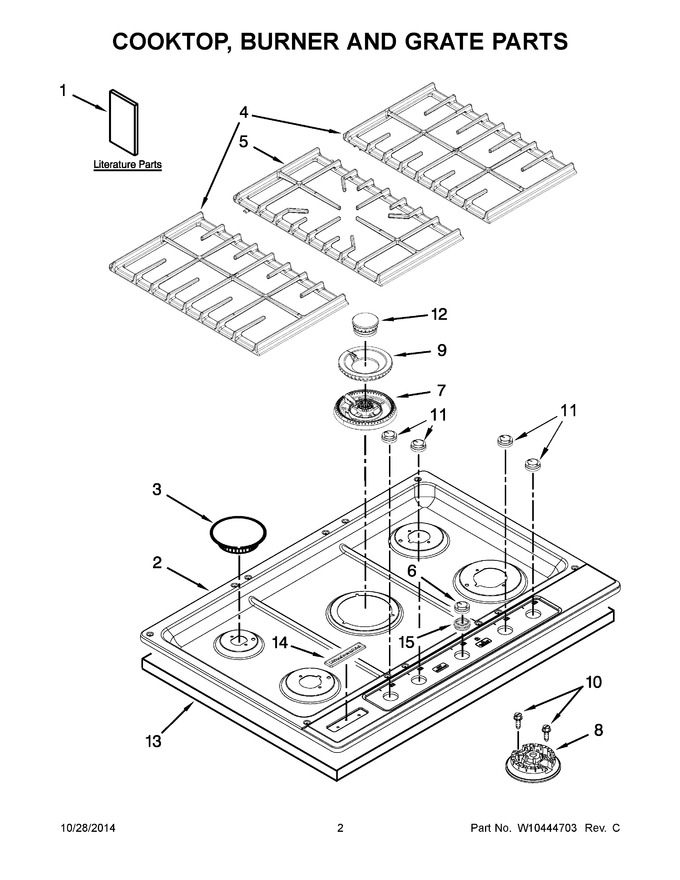

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switches
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10526085 | Installation Instructions |
|
- | |||||
| 2 | W10505943 | Cooktop (stainless) (Replaces: W10397751) |
|
$ 742.00 | |||||
| 3 | WP8286818 | Cap, Burner (black (right Front)) (Replaces: 8286818) |
|
$ 100.97 | |||||
| 4 | 8286659 | Grate (left) |
|
$ 91.14 | |||||
| 5 | 8287048 | Grate (center) |
|
$ 88.87 | |||||
| 6 | W10132191 | Knob (stainless) |
|
$ 53.42 | |||||
| 7 | W10836409 | Spreader, Burner (center) (Replaces: W10398571) |
|
Immediately | $ 115.45 | ||||
| 8 | WP8286815 | Head, Burner (right Front) (Replaces: 8286815) |
|
Immediately | $ 66.94 | ||||
| 9 | W10846732 | Cap, Burner (outer) (black (center)) (Replaces: W10398574) |
|
$ 89.24 | |||||
| 10 | WP8287059 | Screw (Replaces: 8287059) |
|
Immediately | $ 7.02 | ||||
| 11 | WPW10132192 | Assembly, Control Knob (stainless) (Replaces: W10132192) |
|
$ 53.82 | |||||
| 12 | WPW10398575 | Cap, Burner (inner) (black (center)) (Replaces: W10398575) |
|
$ 26.76 | |||||
| 13 | W10398407 | Insulation, Cooktop |
|
- | |||||
| 14 | WPW10243391 | Badge (grey) (Replaces: W10243391) |
|
$ 49.98 | |||||
| 15 | 8286854 | Grommet, Knob (left Front, Right Front, Left Rear, Right Rear & Center) |
|
$ 7.51 | |||||
| 1A | 8304571 | Instructions, Undercounter |
|
- | |||||
| 1B | W10411933 | Use & Care Guide |
|
- | |||||
| 1C | 8286697 | Tech Sheet |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 3A | WP8286816 | Cap, Burner (black (left Rear)) (Replaces: 8286816) |
|
$ 94.92 | |||||
| 3B | WP8286817 | Cap, Burner (black (left Front And Righ Rear)) (Replaces: 8286817) |
|
$ 100.88 | |||||
| 4A | 8286661 | Grate (right) |
|
$ 89.11 | |||||
| 8A | WP8286813 | Head, Burner (left Rear) (Replaces: 8286813) |
|
$ 85.50 | |||||
| 8B | WP8286814 | Head, Burner (left Front And Right Rear) (Replaces: 8286814) |
|
$ 106.79 | |||||
| NI | 8287106 | Clip, Wire (Replaces: W10183556) |
|
- | |||||
| NI | W10515666 | Harness, Main |
|
- | |||||
| NI | 8286987 | Harness, Ui |
|
$ 98.63 | |||||
| NI | W10392003 | Cord, Power |
|
$ 138.57 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 8186533 | Hardware, Installation (Replaces: W10163327) |
|
$ 79.60 |
