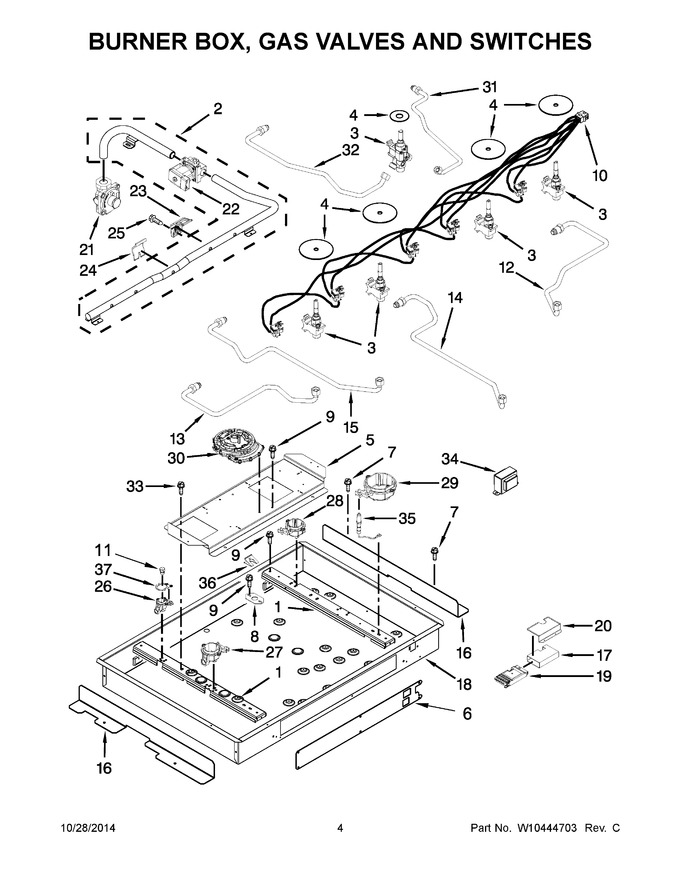

03 - Burner Box, Gas Valves And Switches


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8286753		Rail, Burner (left)		Appelez-nous	-
2	8287311		Pipe, Manifold				$ 218.84
3	8286916		Valve, Single (left Rear)				$ 213.35
4	W10140571		Seal, Switch Shaft				$ 6.60
5	W10411142		Rail, Center		Appelez-nous	-
6	8286740		Cover, Plate		Appelez-nous	-
7	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
8	8286858		Plate, Manifold		Appelez-nous	-
9	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
10	8286687		Harness, Switch				$ 89.50
11	W10791614		Orifice (6k) (left Rear)   (Replaces: W10151348)				$ 85.86
12	WPW10323081		Tubing, Gas Burner (right Front)   (Replaces: W10323081)				$ 62.78
13	W10323078		Tubing, Gas Burner (left Front)		Appelez-nous	-
14	W10323082		Tubing, Gas Burner (right Rear)				$ 44.99
15	W10323080		Tubing, Gas Burner (left Rear)		Appelez-nous	-
16	8286771		Shield, Heat		Appelez-nous	-
17	8286829		Module, Reignition				$ 243.02
18	W10132197		Box, Burner		Appelez-nous	-
19	8287103		Insulation, Reignition Module				$ 66.94
20	W10132198		Cover, Reignition Module		Appelez-nous	-
21	W11087445		Regulator, Pressure   (Replaces: W10132345)			Immediately	$ 177.34
22	8287076		Valve, Solenoid Lock				$ 193.47
23	8287055		Bracket, Single Valve				$ 65.54
24	8287056		Bracket, Dual Valve		Appelez-nous	-
25	8287057		Screw, Valve Bracket				$ 10.15
26	8286820		Holder, Orifice (6k) (left Rear)				$ 68.99
27	8286821		Holder, Orifice (9.1k) (left Front)				$ 69.13
28	W10140569		Holder, Orifice (7k) (right Rear)				$ 69.13
29	8286822		Holder, Orifice (12k) (right Front)				$ 47.00
30	WPW10617292		Assembly, Burner Base (15k)   (Replaces: W10409115)				$ 262.84
31	W10526603		Tube, Outer Crown (center)				$ 35.65
32	W10526602		Tube, Inner Crown (center)				$ 55.78
33	W11676349		Screw   (Replaces: 8286921)			Immediately	$ 12.65
34	8286690		Transformer				$ 113.04
35	WPW10560001		Wiring, Electrode (left Front)   (Replaces: 8286722)				$ 71.52
36	8286863		Spring, Electrode				$ 65.93
37	8286930		Gasket, Orifice (left Rear)				$ 82.05
11A	W10151350		Orifice (7k) (right Rear)				$ 72.95
11B	W10791072		Orifice (10k) (left Front)   (Replaces: W10151349)				$ 85.86
11C	W10791081		Orifice (12k) (right Front)   (Replaces: W10151346)				$ 85.86
11D	W10791070		Simmer Orifice (.91 Diameter) (center)   (Replaces: W10409143)		Appelez-nous	-
11E	W10791079		Orifice (center)   (Replaces: W10409144)				$ 80.11
1A	8286728		Rail, Burner (right)		Appelez-nous	-
35A	8286723		Wiring, Electrode (left Rear)				$ 69.68
35B	8286724		Wiring, Electrode (right Front)				$ 30.12
35C	W10854967		Wiring, Electrode (right Rear)   (Replaces: 8286725)			Immediately	$ 41.37
35D	WPW10398577		Wiring, Electrode (center)   (Replaces: W10398577)				$ 127.04
37A	8286931		Gasket, Orifice (left Front And Right Rear)				$ 53.77
37B	8286932		Gasket, Orifice (right Front)				$ 82.11
3A	8286919		Valve, Single (left Front And Right Rear)				$ 212.06
3B	8286920		Valve, Single (left Front)				$ 153.17
3C	WP8287058		Valve, Dual (center)   (Replaces: 8287058)				$ 275.16
4A	W10140577		Seal, Dual Switch Shaft		Appelez-nous	-
