01 - Cooktop Parts

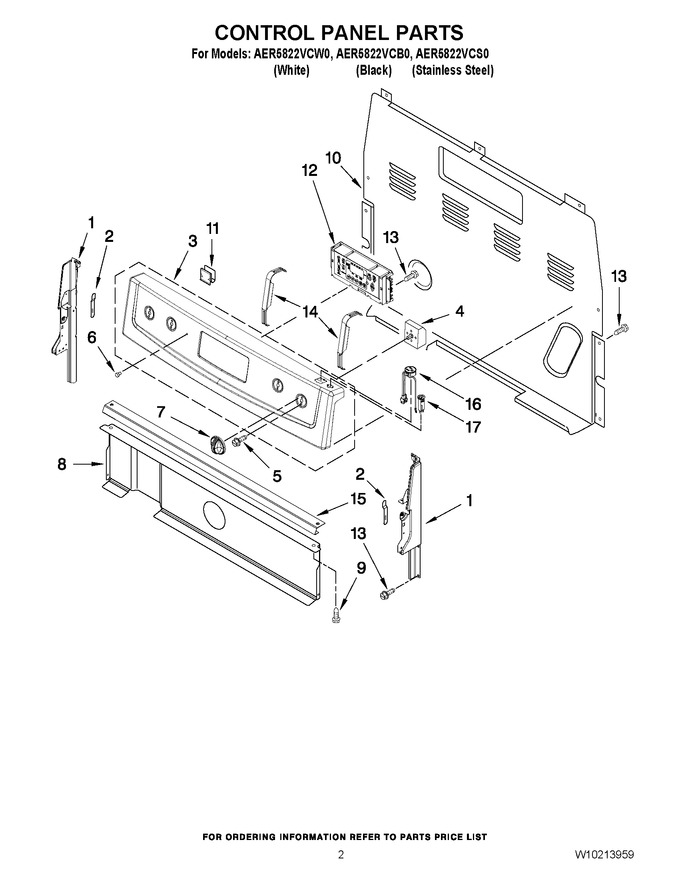

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 36.39 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 52.14 | |||||
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10184437) |
|
$ 131.85 | |||||
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10184438) |
|
$ 36.40 | |||||
| 2 | 3196200 | Clip, Spring |
|
$ 8.96 | |||||
| 3 | W10170031 | Panel, Console (black) |
|
$ 47.48 | |||||
| 3 | W10170032 | Panel, Console (stainles Steel) |
|
$ 89.25 | |||||
| 3 | W10170030 | Panel, Console (white) |
|
$ 47.48 | |||||
| 4 | WP3149400 | Switch, Infinite (lf/rr (orange)) (Replaces: 3148954) |
|
Immediately | $ 81.46 | ||||
| 4 | 5500-287 | Switch, Infinite (lr/rf (silver)) (Replaces: 3148951) |
|
Immediately | $ 47.15 | ||||
| 5 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.47 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | W10119706 | Knob, Infinite (black) |
|
$ 45.34 | |||||
| 7 | W10119705 | Knob, Infinite (white) |
|
Immediately | $ 45.58 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 307.56 | ||||
| 9 | 3196166 | Screw |
|
$ 6.31 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 10.85 | |||||
| 12 | W10363662 | Control, Range (black & Stainless) |
|
- | |||||
| 12 | W10363661 | Control, Range (white) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 14 | W11230932 | Brkt, Mntg Eoc (Replaces: W10138683) |
|
Immediately | $ 72.69 | ||||
| 15 | W10525121 | Brkt-mntg, Console (Replaces: W10182322) |
|
$ 84.73 | |||||
| 16 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 72.71 | ||||
| 16 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 16.62 | ||||
| 17 | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 48.43 | ||||
| 17 | WP9757601 | Circuit Breaker (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 |
