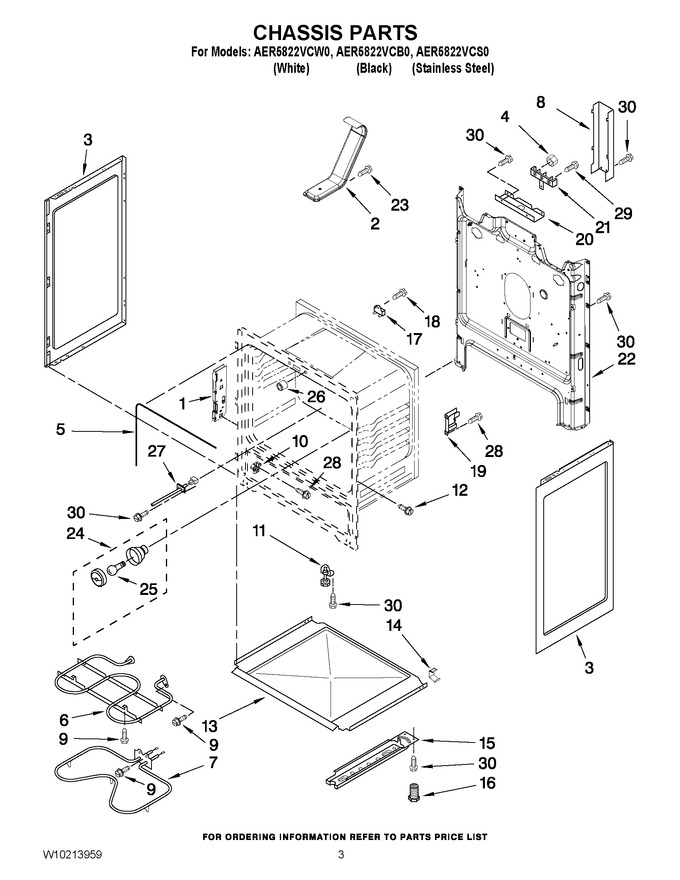

03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10647259 | Receiver, Hinge-door (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 2 | WPW10134285 | Flue (Replaces: W10134285) |
|
Immediately | $ 225.43 | ||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10322770) |
|
Immediately | $ 148.35 | ||||
| 3 | WPW10575396 | Panel, Side (white) (Replaces: W10322769) |
|
$ 133.84 | |||||
| 4 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 | ||||
| 5 | W11542153 | Seal, Oven Door (Replaces: W10129032) |
|
Immediately | $ 45.18 | ||||
| 6 | W10856603 | Element, Broil (Replaces: W10308476) |
|
Immediately | $ 139.16 | ||||
| 7 | WPW10308477 | Element, Bake (Replaces: W10308477) |
|
Immediately | $ 64.67 | ||||
| 8 | WPW10326122 | Cover, Box (Replaces: W10326122) |
|
$ 119.66 | |||||
| 9 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.04 | |||||
| 10 | WPW10114344 | Glide, Drawer Frnt (Replaces: W10114344) |
|
Immediately | $ 7.34 | ||||
| 11 | WPW10341186 | Foot, Front (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 12 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 6.98 | |||||
| 13 | WP8054068 | Tray, Insulation (Replaces: 8054068) |
|
$ 89.45 | |||||
| 14 | W10137382 | Clip, Panel |
|
Immediately | $ 41.50 | ||||
| 15 | W11818353 | Rail, Base (Replaces: 9760314) |
|
$ 53.71 | |||||
| 16 | WPW10058460 | Foot, Rear (Replaces: W10058460) |
|
Immediately | $ 7.07 | ||||
| 17 | WP3196548 | Thermal, Fuse (Replaces: 3196548) |
|
Immediately | $ 42.94 | ||||
| 18 | 3196172 | Screw |
|
Immediately | $ 11.55 | ||||
| 19 | W10404688 | Support, Oven (Replaces: W10355173) |
|
$ 15.17 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WP8203546 | Block, Terminal (Replaces: 8203546) |
|
Immediately | $ 27.12 | ||||
| 22 | 8274034 | Back, Main |
|
$ 123.95 | |||||
| 23 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.04 | |||||
| 24 | W11594027 | Light Socket Assy (Replaces: 3196701) |
|
Immediately | $ 78.31 | ||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 26 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 48.05 | ||||
| 27 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 96.15 | ||||
| 28 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 29 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.16 | |||||
| 30 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| NI | W11684918 | Insulation, Vent (Replaces: W10333344) |
|
Immediately | $ 30.41 | ||||
| NI | WPW10208653 | Insulation, Wrap (Replaces: 8273263) |
|
Immediately | $ 49.92 | ||||
| NI | W11311894 | Insulation, Back (Replaces: 8272611) |
|
$ 95.48 |
