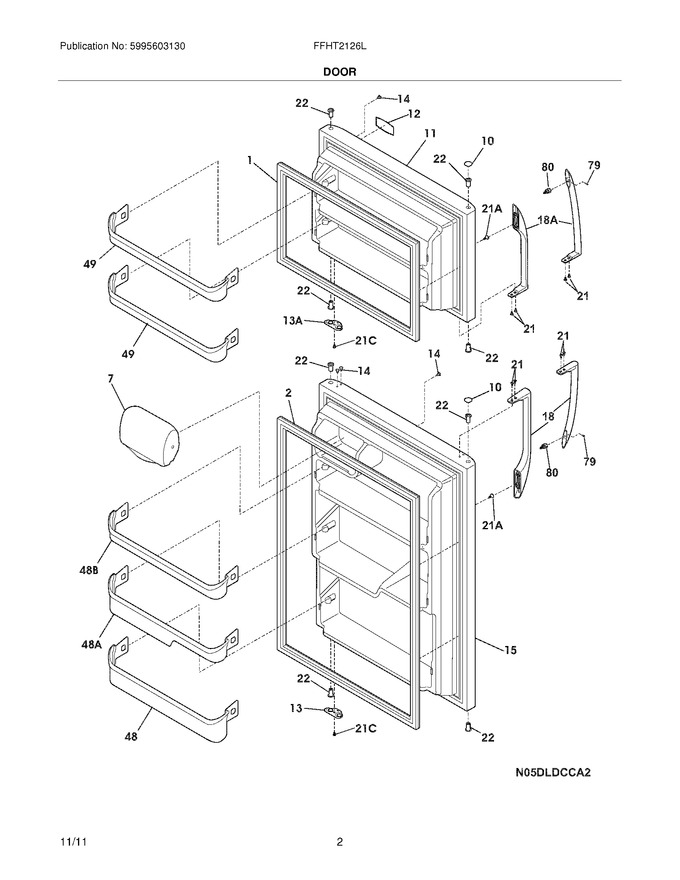

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	240337712		Door-dairy,w/o Graphics ,clear   (Replaces: 240337703)			Immediately	$ 36.41
11	240450395		Door,frzr ,stainless ,rh				$ 238.81
12	242016301		Nameplate				$ 4.26
13	240312422		Door Stop,black ,refr   (Replaces: 240312405)				$ 15.17
15	242038823		Door-refr,stainless ,rh ,complete Assy				$ 447.83
18	242075501		Handle-door,stainless ,refr-rh/frzr-lh   (Replaces: 242075202)				$ 233.58
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507147		Bearing-hinge,black   (Replaces: 240527102)			Immediately	$ 7.59
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 52.37
49	240495804		Bin-door,pseudo ,frzr			Immediately	$ 43.29
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop,black ,frzr				$ 21.27
18A	242075501		Handle-door,stainless ,refr-lh/frzr-rh   (Replaces: 242075201)				$ 233.58
21A	240521303		Screw,no.10-16 X 1/2			Immediately	$ 30.20
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
48A	240337901		Bin-door,refr			Immediately	$ 52.13
48B	240338001		Bin-door,pseudo ,gallon ,refr			Immediately	$ 34.96
F1	242193211		Gasket-frzr Door,black ,magnetic   (Replaces: 241872511)				$ 187.11
F2	242193214		Gasket,refr Door Seal ,black ,magnetic   (Replaces: 241872514)				$ 190.85
NI	241701901		Screw Driver		Appelez-nous	-
NI	241601001		Wrench,allen		Appelez-nous	-
