SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - Shelves

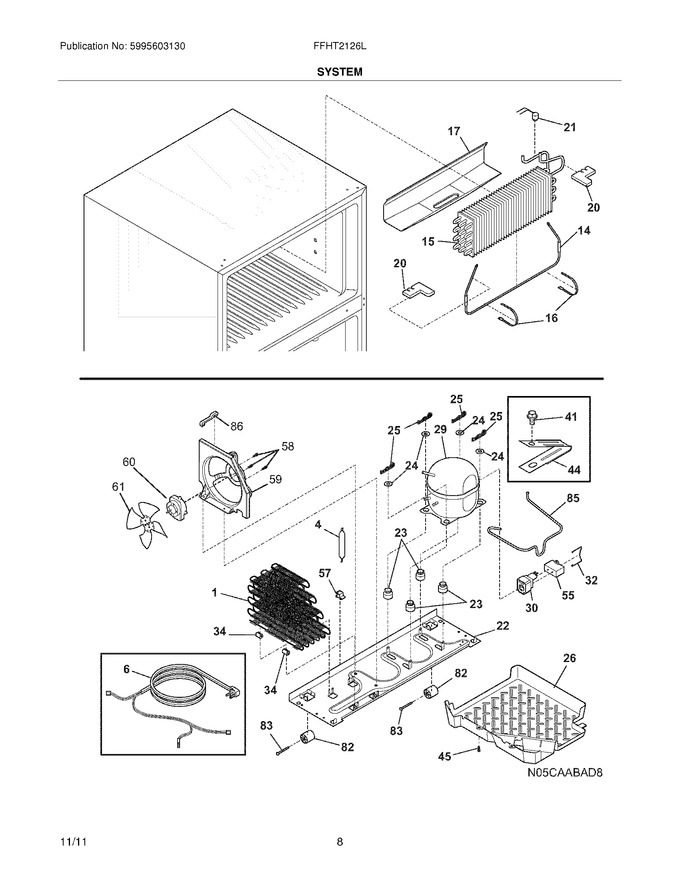

09 - System


10 - Wiring Schematic


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
17	241801301		Trough-drain				$ 64.46
20	241551902		Insulation Block				$ 11.34
22	241665504		Base-compressor				$ 80.09
23	218513300		Grommet-compr Mtg,compressor ,(4)   (Replaces: 241659701)				$ 42.53
24	241812301		Washer-compr Mtg				$ 12.89
25	242037701		Clip-compressor Mtg				$ 2.84
26	241697603		Pan-defrost   (Replaces: 241697602)				$ 79.22
32	241650901		Clamp,elec Cont Mtg ,compressor				$ 11.34
34	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
41	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
44	215174700		Clamp-service Cord, Strain Relief, Galv Steel		Appelez-nous	-
45	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	240569201		Screw,8-18 X 0.500		Appelez-nous	-
59	241946106		Shroud-cond Fan				$ 45.36
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 21.99
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 35.34
85	241856902		Tube-connector,suction		Appelez-nous	-
86	240409302		Spacer-cond Tube,black				$ 67.49
F1	241785403		Condenser,dynamic		Appelez-nous	-
F14	242044021		Heater-defrost				$ 109.15
F15	5303918274		Evaporator Kit			Immediately	$ 423.67
F21	5303918202		Thermostat-defrost,kit			Immediately	$ 20.21
F29	5304511982		Compressor,w/o Electricals   (Replaces: 5303918359)				$ 492.32
F30	241707701		Starter,ptc				$ 77.97
F4	5303305677		Drier-filter,r134a System   (Replaces: 218944001)			Immediately	$ 31.67
F55	297286803		Capacitor-run			Immediately	$ 28.77
F6	5304521786		Harness-wiring,machine Compt   (Replaces: 242019701)				$ 126.65
F60	242018301		Motor-condenser Fan			Immediately	$ 138.56
FNI	5303918330		Heat Exchanger Kit,suction Line ,service				$ 335.10
FNI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
NI	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
NI	218709101		Screw,hex Head ,10-32 X 0.500				$ 6.38
NI	241941202		Screw,hex Washer Head ,8-18 X 5/16   (Replaces: 240433204)				$ 15.17
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 19.13
NI	240359403		Screw-fan Shroud,(2)				$ 3.79
NI	5304421289		Hot Tube Repair Kit,service				$ 537.60
NI	240346701		Tape-foam Seal,shroud				$ 29.77

    View Diagram in Separate Window       Print Part List
