01 - Cooktop Parts


02 - Chassis Parts

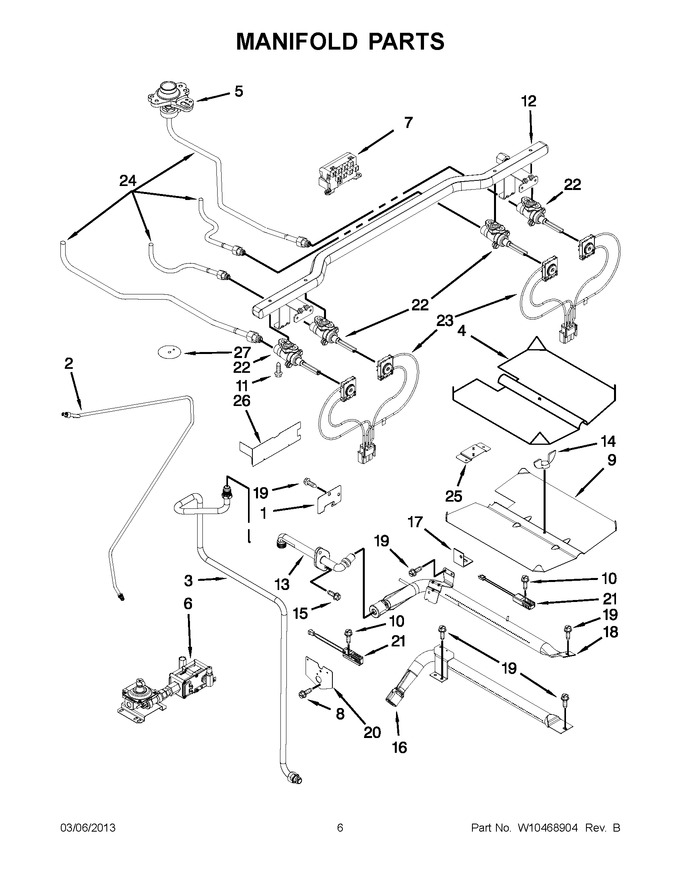

03 - Manifold Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4005F421-45		Cover, Ignitor Wire		Appelez-nous	-
2	W10224720		Tubing, Gas Supply				$ 214.65
3	7506P301-60		Tubing, Broiler Fitting To Valve		Appelez-nous	-
4	3601F307-45		Baffle, Broil Burner				$ 200.26
5	WP7527P004-60		Holder, Orifice (right Front)   (Replaces: 7527P004-60)				$ 72.90
5	WP7527P002-60		Holder, Orifice (right Rear)   (Replaces: 7527P002-60)				$ 72.90
5	74009553		Holder, Orifice (left Rear)   (Replaces: 7527P042-60)				$ 75.27
5	WP7527P061-60		Holder, Orifice (left Front)   (Replaces: 7527P061-60)				$ 96.89
6	W10130932		Valve, Safety   (Replaces: 7501P231-60)			Immediately	$ 334.23
7	WPW10475147		Module, Spark   (Replaces: 7431P038-60)			Immediately	$ 214.42
8	WP3387230		Screw   (Replaces: 7101P502-60)			Immediately	$ 7.69
9	3601F239-45		Baffle, Bake Burner		Appelez-nous	-
10	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.29
11	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 12.62
12	W10165142		Pipe, Manifold				$ 114.40
13	WP74010901		Fitting, Broiler   (Replaces: 7507P407-60)				$ 75.29
14	7103P030-60		Wing Nut				$ 6.37
15	W11846982		Screw, Switch   (Replaces: 7101P676-60)		Appelez-nous	-
16	7505P254-60		Burner, Bake		Appelez-nous	-
17	3807F480-45		Support, Bake Burner				$ 17.01
18	7505P293-60		Burner, Broiler				$ 89.91
19	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.26
20	3605F269-45		Plate, Broil Fitting		Appelez-nous	-
21	74007498		Ignitor, Electric Ignition   (Replaces: 7432P106-60)			Immediately	$ 78.40
22	7502P561-60		Valve, Top Burner (left Rear)				$ 177.73
22	WP74011649		Valve, Dual Ring (left Front)   (Replaces: 7502P533-60)				$ 313.97
22	7502P564-60		Valve, Top Burner (right Front)				$ 117.14
22	7502P562-60		Valve, Top Burner (right Rear)				$ 216.90
23	WPW10181456		Switch, Reignition (left Front & Left Rear)   (Replaces: W10181456)			Immediately	$ 177.80
23	W10181455		Switch, Reignition (right Front & Right Rear)				$ 173.26
24	7506P459-60		Tube, Burner (left Rear)		Appelez-nous	-
24	7506P457-60		Tubing, Inner Dual				$ 22.81
24	7506P458-60		Tubing, Outer Dual				$ 22.37
24	7506P460-60		Tube, Burner (right Front)				$ 23.53
24	7506P461-60		Tube, Burner (right Rear)				$ 30.72
25	3801F944-51		Bracket, Orifice		Appelez-nous	-
26	4005F638-51		Cover, Burner Valve		Appelez-nous	-
27	WP74008212		Cover, Valve Switch   (Replaces: 7724P194-60)				$ 6.88
NI	7507P418-60		Spuds, Lp Gas		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
