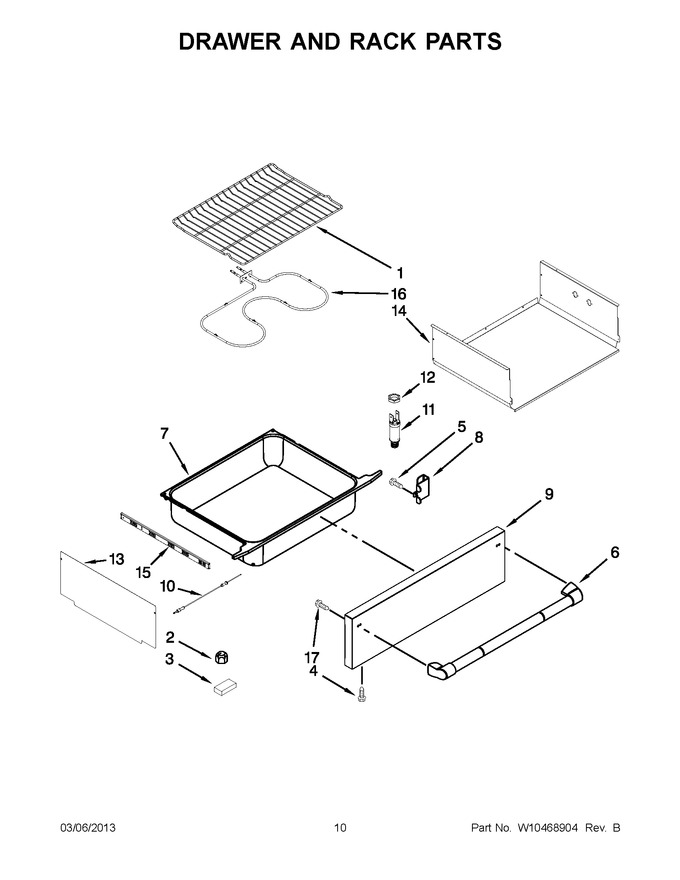

05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7801P173-60 | Rack, Oven |
|
$ 55.72 | |||||
| 2 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) |
|
$ 4.00 | |||||
| 3 | WP74005546 | Spacer, Rubber (Replaces: 8010P130-60) |
|
$ 9.48 | |||||
| 4 | 74003975 | Screw (Replaces: 7101P375-60) |
|
$ 12.02 | |||||
| 5 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 12.20 | |||||
| 6 | WP7701P475-60 | Handle, Door (Replaces: 7701P475-60) |
|
$ 251.94 | |||||
| 7 | 3405W043-19 | Drawer, Warming |
|
$ 177.18 | |||||
| 8 | 3801F887-51 | Bracket, Drawer |
|
$ 8.32 | |||||
| 9 | W10253207 | Panel, Drawer |
|
- | |||||
| 10 | WP7430P038-60 | Probe, Meat (Replaces: 7430P038-60) |
|
$ 129.30 | |||||
| 11 | 7408P086-60 | Receptacle, Meat Probe |
|
$ 33.43 | |||||
| 12 | 7103P177-60 | Nut, 3/8-32 Hex |
|
- | |||||
| 13 | 3604F435-51 | Shield, Warming Drawer |
|
- | |||||
| 14 | 2206F087-45 | Body, Warming Drawer |
|
$ 78.16 | |||||
| 15 | WPW10293200 | Glide, Drawer (Replaces: W10293200) |
|
$ 97.65 | |||||
| 16 | W10310262 | Element, Warming |
|
- | |||||
| 17 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.29 |
