SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


04 - Chassis Parts

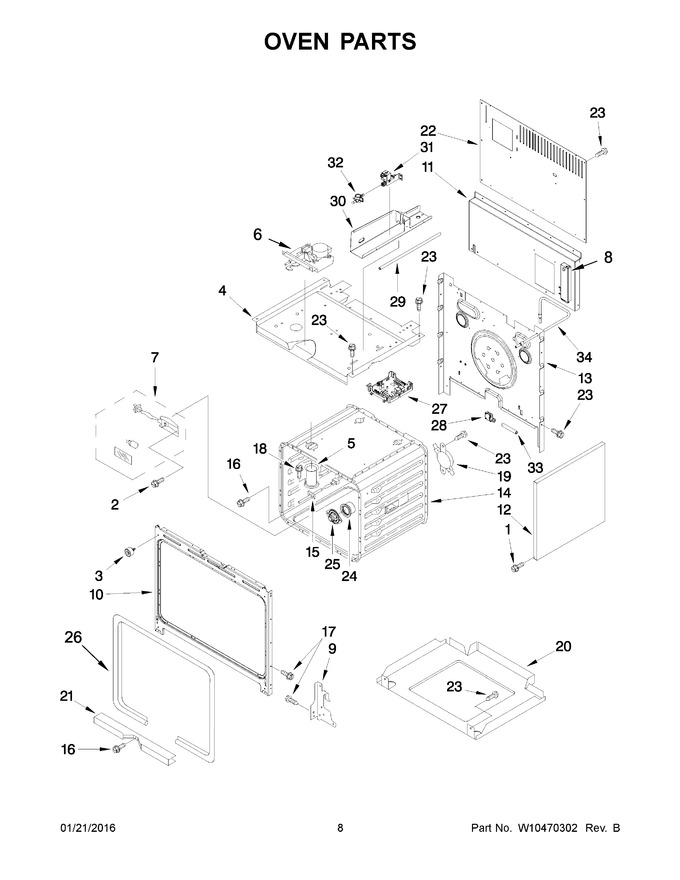

05 - Oven Parts


06 - Top Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 6.47
2	4449748		Screw				$ 12.20
3	W10105790		Bumper & Screw				$ 6.35
4	W10267896		Top, Chassis		Appelez-nous	-
5	W10288061		Tube, Vent				$ 99.38
6	W11029221		Latch, Motorized   (Replaces: W10195935)			Immediately	$ 280.85
7	WPW10307114		Assembly, Oven Light   (Replaces: W10307114)			Immediately	$ 99.44
8	8186352		Assembly, Boiler   (Replaces: 9758598)				$ 296.08
9	WP4455605		Receiver, Hinge (left)   (Replaces: 4455605)			Immediately	$ 103.82
10	W10160867		Frame, Front				$ 173.44
11	W10145398		Panel, Back Bottom		Appelez-nous	-
12	W10269206		Chassis, Side (left)				$ 201.67
13	W10273153		Back, Chassis		Appelez-nous	-
14	N/P		Liner, Oven (not Serviced)		Appelez-nous	-
15	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 86.25
16	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
18	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
19	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 100.66
20	W10235536		Bottom, Chassis		Appelez-nous	-
21	W11368870		Retainer, Gasket (30")   (Replaces: W10157511)				$ 21.35
22	W10269208		Panel, Back Top		Appelez-nous	-
23	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
24	W10153096		Orifice, Boiler		Appelez-nous	-
25	9758597		Orifice, Boiler Slip Fit				$ 42.82
26	W11676901		Gasket, Oven   (Replaces: W10160889)				$ 63.24
27	W10825621		Manager, Appliance		Appelez-nous	-
28	W10194453		Switch, Pressure				$ 254.00
29	WPW10076930		Hose, Transfer   (Replaces: W10076930)				$ 23.82
30	W10160877		Encloseure, Steam Valve		Appelez-nous	-
31	W10111418		Valve, Solenoid				$ 151.74
32	WPW10076760		Sensor, Conductivity Slip Fit   (Replaces: W10076760)				$ 189.12
33	W10116067		Hose, Silicon (red)		Appelez-nous	-
34	W10528582		Tube, Copper Steam		Appelez-nous	-
12A	W10269205		Chassis, Side (right)				$ 201.88
9A	WP4455606		Receiver, Hinge (right)   (Replaces: 4455606)			Immediately	$ 107.47
NI	W10145746		Insulation, Back		Appelez-nous	-
NI	W10860322		Insulation, Wrapper   (Replaces: W10246067)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
