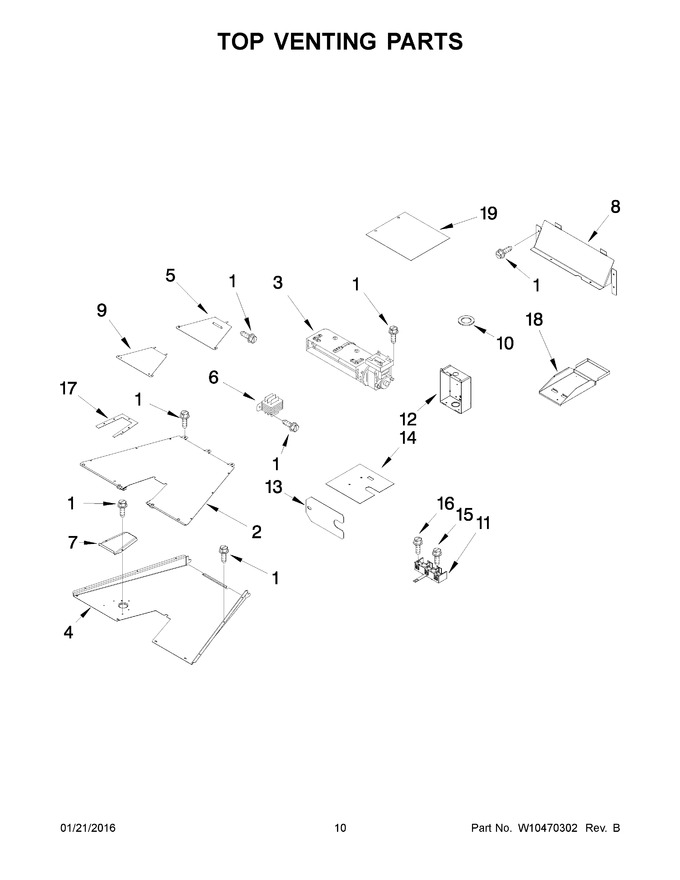

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.15
2	W10160896		Vent, Cooling Top		Appelez-nous	-
3	WPW10245511		Blower 60mm   (Replaces: W10245511)			Immediately	$ 275.42
4	W10246078		Vent, Cooling Bottom		Appelez-nous	-
5	W10160875		Plate, Cooling Latch		Appelez-nous	-
6	9762885		Transformer, Control				$ 174.77
7	W10246075		Slope, Exhaust Vent (30")		Appelez-nous	-
8	W10160844		Bracket, Blower		Appelez-nous	-
9	W10160858		Cover, Latch				$ 65.95
10	W10270396		Seal, Chimney		Appelez-nous	-
11	WP9761958		Block, Terminal   (Replaces: 9761958)			Immediately	$ 39.72
12	W10467022		Box, Terminal		Appelez-nous	-
13	W10618712		Cover, Channel		Appelez-nous	-
14	9759721		Insulator, Terminal Box		Appelez-nous	-
15	WP3400015		Screw, Grounding   (Replaces: 3400015)				$ 6.47
16	WP3196163		Screw   (Replaces: 3196163)				$ 6.26
17	W10270397		Seal, Vent Slope (30")		Appelez-nous	-
18	W10249337		Support, Control		Appelez-nous	-
19	W10239444		Seal, Control		Appelez-nous	-
