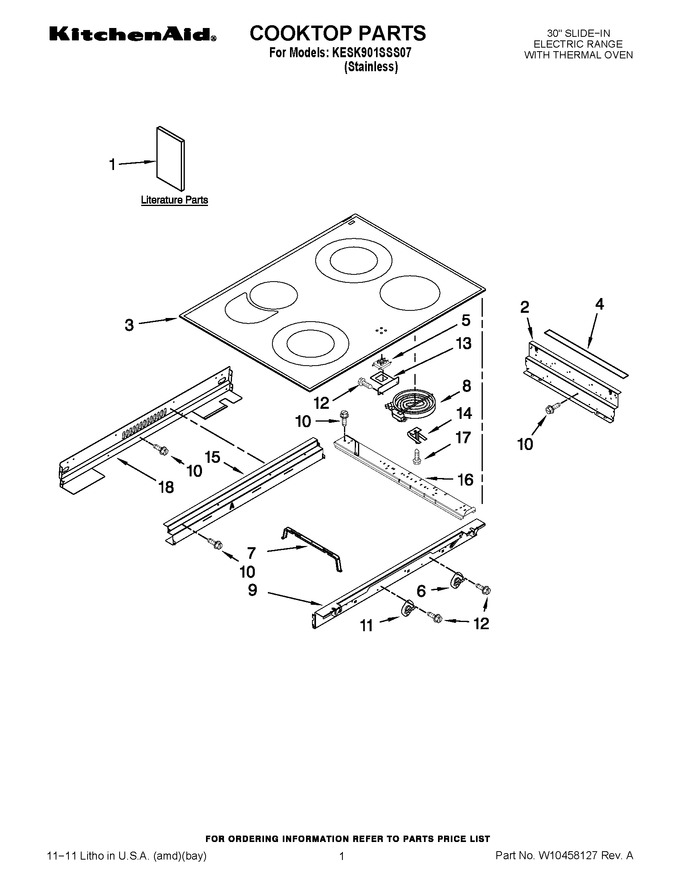

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10065852		Safe Cooking Tips (french)		Appelez-nous	-
1	W10246119		Installation Instructiions		Appelez-nous	-
1	W10246111		Use & Care Guide		Appelez-nous	-
1	W10189732		Tech Sheet		Appelez-nous	-
1	9763467		Easy Set Guide		Appelez-nous	-
1	9757680		Anti-tip Instructions		Appelez-nous	-
1	9762761		Safe Cooking Tips (english)		Appelez-nous	-
2	9761422		Frame, Cooktop Side				$ 67.87
3	W10285078		Cooktop   (Replaces: W10109850)				$ 854.12
4	W10076030		Gasket				$ 78.51
5	8523739		Light, Indicator				$ 120.71
6	WP9759944		Thermostat   (Replaces: 9759944)			Immediately	$ 121.57
7	9756821		Support, Wiring		Appelez-nous	-
8	WPW10248258		Element, Surface (rr)   (Replaces: W10248258)				$ 291.04
8	WP8523045		Element, Surface (lr)   (Replaces: 8523045)				$ 269.30
8	WP8273993		Element, Surface (rf)   (Replaces: 8273993)			Immediately	$ 220.06
8	WPW10275049		Element, Surface (lf)   (Replaces: W10275049)			Immediately	$ 282.81
9	9761423		Frame, Cooktop Front				$ 43.33
10	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
11	341196		Thermostat				$ 33.17
12	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
13	9758799		Bracket, Indicator Lamp				$ 47.83
14	9759094		Spring, Locator				$ 6.34
15	9761768		Frame, Cooktop Rear				$ 73.35
16	9763517		Rail, Element				$ 62.80
17	WP486754		Screw   (Replaces: 246119)				$ 6.75
18	9761724		Cover, Cooktop Rear				$ 35.73

    View Diagram in Separate Window       Print Part List
